ICON 58632 Part Description
Manufacturer
Product Description

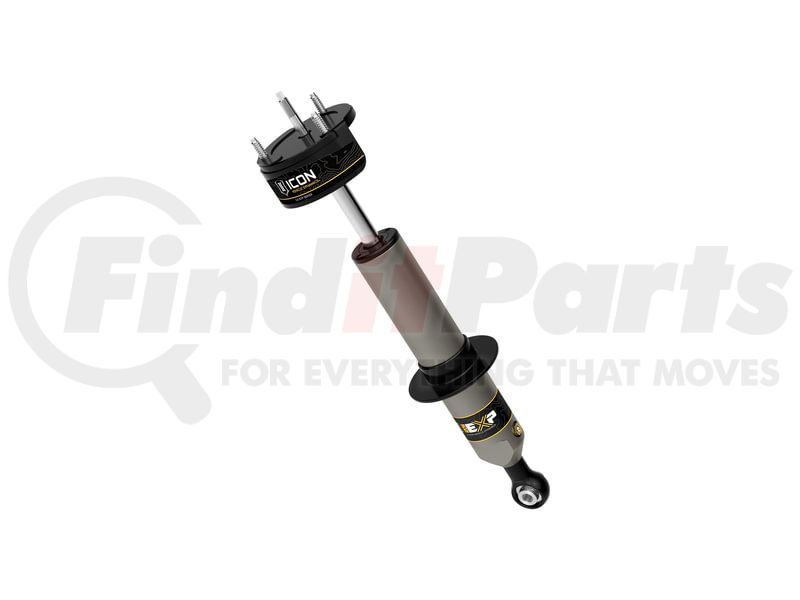

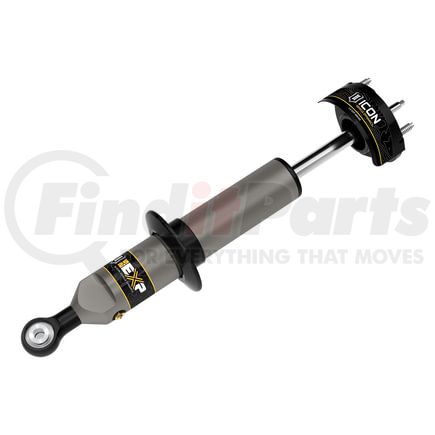

05-23 TACOMA FRONT 2.5 EXP COILOVER
Features & Benefits
- Vehicle specific design for 2005-2023 Toyota Tacoma
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir
- Adjustable ride heights from 0-2” of front lift over stock with the use of snap ring
- Utilizes factory coil and coil hardware
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearing for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
05-UP TACOMA FRONT 2.5 EXP COILOVER
ICON 58632 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-on Part | 611030 - 05-23 TACO/07-09 FJ/03-09 T4R SWAYBAR RELOCATION KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | No |
| Body Diameter | 2.5 in |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | No |
| Coil Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Compressed Length | 15.67 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Hard Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2.5 IN |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 21.21 in |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Maximum Lift | 2 IN |
| Minimum Lift | 0 IN |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Center of Eyelet |
| Shock Absorber Rod End Measuring Point | Shoulder of Stem |
| Title | ICON 2005-2023 Toyota Tacoma Front EXP Coilover |
| Travel Length | 5.54 in |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
Additional Information
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103421063 |
ICON 58632 Fits Vehicles
- Toyota Tacoma (2005-2023)
