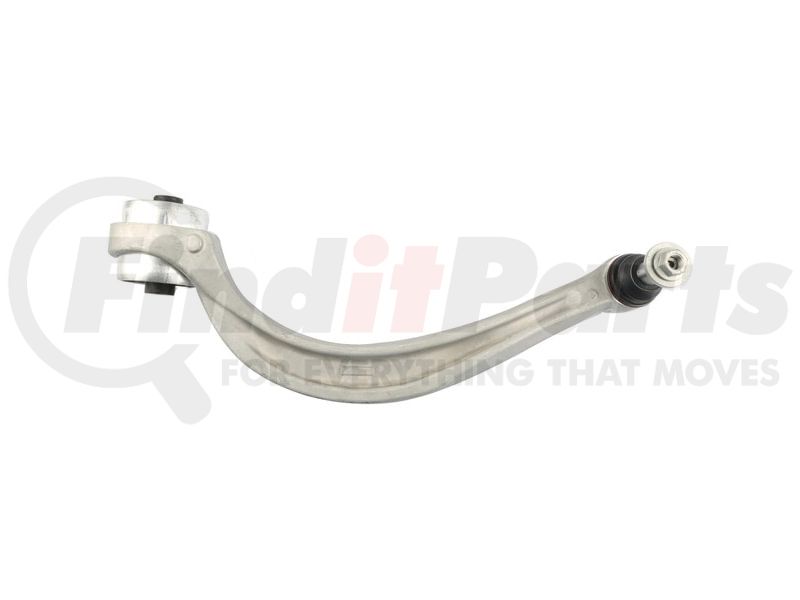

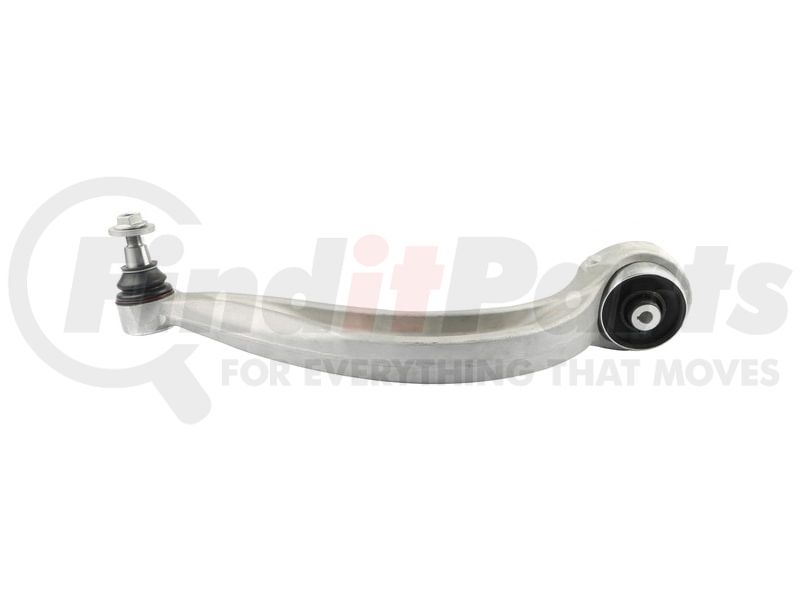

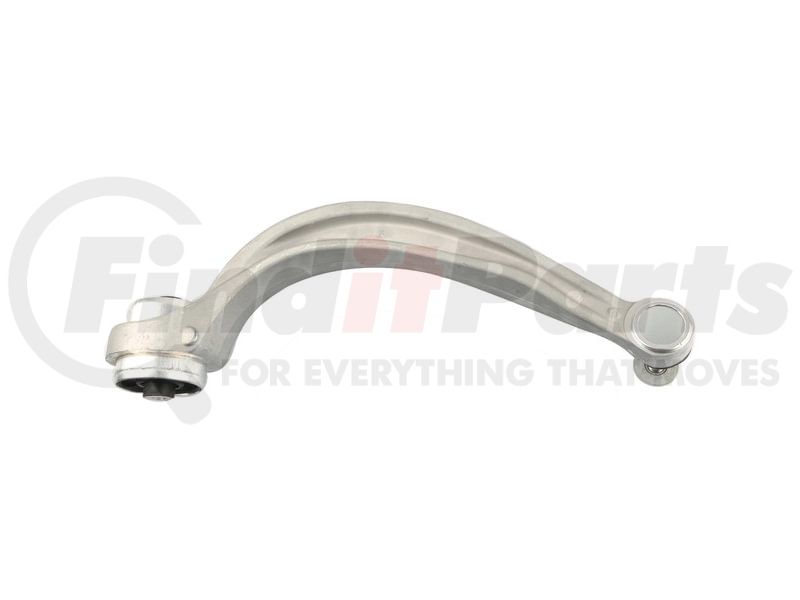

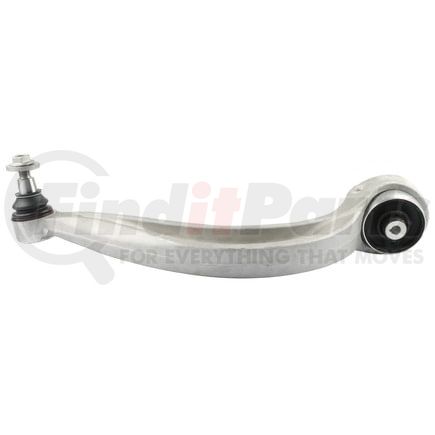

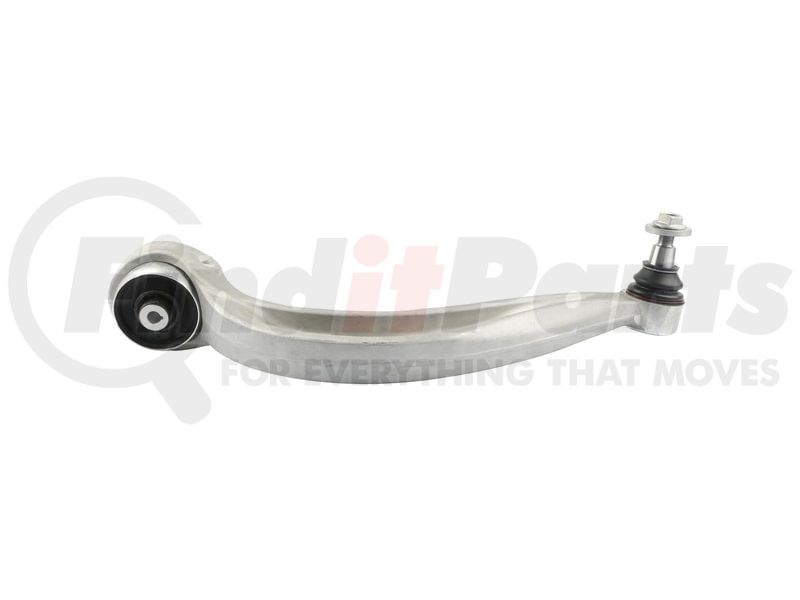

Delphi TC7055 - Control Arm and Ball Joint Assembly
$18799
In stock
limited availability at this price!
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 76.00 MM |
| Ball Joint Stud Length | 2.992 IN |
| Control Arm Maximum Length | 447.00 MM |
| Control Arm Maximum Length | 17.598 IN |
| Bushing Inside Diameter | 12.20 MM |
| Bushing Length | 94.00 MM |
| Bushing Length | 3.701 IN |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
| Bushing Inside Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | US |
| UPC | 00689604387948 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Audi e-tron S (2022)
- Audi e-tron S Sportback (2022)
- Audi RS Q8 (2021-2022)
- Audi SQ8 (2020-2022)
- Audi SQ7 (2020-2022)
- Audi e-tron Sportback (2020-2022)
- Audi S8 (2020-2022)
- Audi A8 Quattro (2019-2022)
- Audi e-tron Quattro (2019-2022)
- Audi Q8 (2019-2022)
- Audi Q7 (2017-2022)
