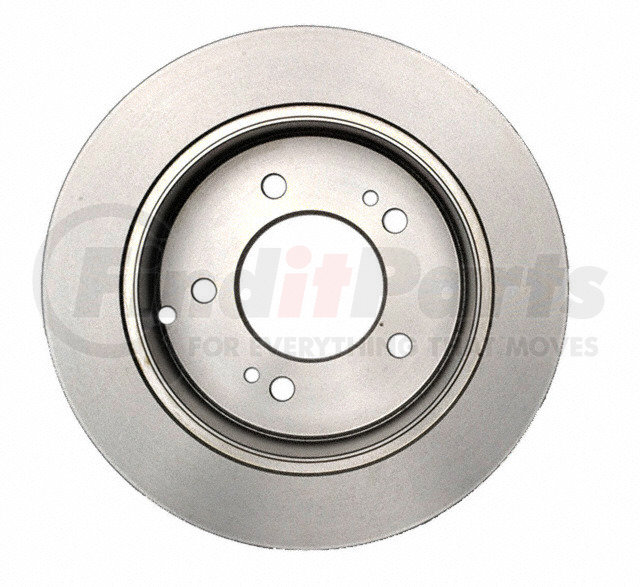

RAYBESTOS 980095 Part Description
Manufacturer
Product Description
Disc Brk Rotor
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
Disc Brake Rotor F Weight 9.5 WHEEL HUB ASSEMBLY Wheel Bearing and Hub Assembly Wheel Bearing and Hub Assembly
712125
by RAYBESTOSRAYBESTOS 980095 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.99 IN |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.331 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.491 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Outside Diameter | 10.315 IN |
| Overall Height | 2.402 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 75.95 MM |
| Discard Thickness | 8.4 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 12.45 MM |
| Nominal Thickness | 10 MM |
| Outside Diameter | 262 MM |
| Overall Height | 61 MM |
Additional Information
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
RAYBESTOS 980095 Cross References
| Brand | Part Number |
|---|---|
| 78210101 | |
| ATE BRAKE PRODUCTS | 410318 |
| Advance Auto Parts | YH145535, YH145535C, YH145535P |
| AutoZone | 31339, 31339DG |
| Autospecialty | JBR959 |
| Autoxtra | 80980095, AX31339, AX31339P |
| BREMBO | 08.A114.50 |
| Beck/Arnley | 083-2905 |
| Bendix | 145535 |
| Bosch | 28010830 |
| BrakeBest | 28010828, 28010830, 980095, 980095FZN, 980095R, 980095RGS |
| Brembo | 08.A114.20, 08.A114.21, 25909 |
| CENTRIC | 120.51011, 121.51011 |
| Centric Parts | 120.51011, 121.51011, 125.51011, 126.51011CSL, 126.51011CSR, 126.51011SL, 126.51011SR, 127.51011L, 127.51011R, 320.51011 |
| Dura Corp | BR31339, BR3133902 |
| DuraGo | BR31339, BR31339-02 |
| Eurorotor | HY-396 |
| Hyundai | 584110A000, 584110A010 |
| Kia | 5841139600, 584113K300 |
| MAGMA PRODUCTS | PSR285061 |
| Mighty Distributing System | 31339 |
| Monroe Brakes | BD126252 |
| NEOTEK | 106927GF |
| Newtek Automotive USA | 31339 |
| Omnicraft | QBRR178 |
| PRONTO | BR31339 |
| Pilenga | 1614541, 5793, W0133-1614541 |
| PowerStop | JBR959EVC |
| Qualis | 31339 |
| TRW | 4281, DF4281 |
| TopNotch | TN980095GEO |
| UAP | 2031339, 31339 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51556 |
| WABCO - Archived | PS31339 |
| WAGNER | BD126252, BD126252E |
| WORLDPAC | 1407-78765, 1427-530214 |
| Wagner Brake | BD126252, BD126252E, SB980095 |
| Winhere | 661651 |
RAYBESTOS 980095 Fits Vehicles
- Hyundai XG300 (2001)
- Kia Magentis (2005-2010)
- Kia Optima (2006-2010)
- Hyundai Sonata (2005-2010)
- Kia Sportage (2005-2010)
- Hyundai XG350 (2002-2005)
- Hyundai Tucson (2005-2009)
