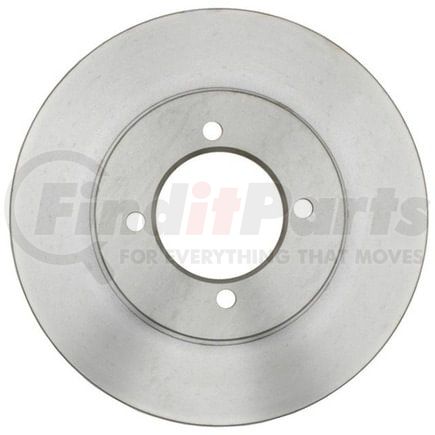

RAYBESTOS 9074 Raybestos Specialty - Street Performance Brake Rotor

(0)

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 9074 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Street Performance Brake Rotor

Application Summary

1973-1968 Nissan 510 Front, 1975-1974 Nissan B210 Front, 1973 Nissan 610 Front

Features & Benefits

  • Application Specific Enhanced Iron
  • Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
  • Cooling Vanes
  • The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
  • Application Specific Coating
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
  • Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
  • Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
  • Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
  • Turned Finish
  • Turned finish minimizes noise and improves responsiveness for smoother stops.
  • S-Groove Slot
  • Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
  • Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

RAYBESTOS 9074 Specifications

Product Attributes

Center Hole Diameter 2.678 IN
Center Hole Diameter 68 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.331 IN
Discard Thickness 8.4 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 3.543 IN
Mounting Bolt Hole Circle Diameter 90 MM
Mounting Bolt Hole Diameter 0.416 IN
Mounting Bolt Hole Diameter 10.55 MM
Mounting Bolt Hole Quantity 4
Nominal Thickness 0.394 IN
Nominal Thickness 10 MM
Outside Diameter 9.13 IN
Outside Diameter 231.9 MM
Overall Height 1.575 IN
Overall Height 40 MM
Salability Restrictions No
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 4
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00030999079701

RAYBESTOS 9074 Cross References

BrandPart Number
12-600CP
ACCURATE22614
ADVANCE AUTO PARTS141062, YH141062
AMERICAN REMANUFACTURED89-04001
AUTOSPECIALTYJBR103, JBR103E
AUTOZONE3101
AXXIS085-5250
BAP GEON1600511
BECK/ARNLEY083-0299
BENDIX141062
BRAKE HEADQUARTERSBR04079
BRAKE PRO4619074
BRAKEBEST9074, 9074R, 9074RGS, BD97057
BREMBO08.2268.20, 25026
CALIFORNIA DRUM & ROTOR97057
CENTRIC120.42001, 121.42001
CENTURY9074
CERTIFIED DIVISIONR11
CEW1163000
Casting Numbers210151-C, 210882-C, 31011, 326039
Centric Parts120.42001, 121.42001
DATSUN/NISSAN40206A1155
DAYTON WALTHERD4850, D7096
DURA CORPBR3101
EIS BRAKESD9074
EUROROTORNI411
FRATELLI POLETTI99YC
GIRLINGGR601
GREN30101
HOLLANDER50854
INTERBRAKESNS011P
INTERNATIONAL PARTS SERVICE8-8002
ITM ENGINE COMPONENTS1600511
KELSEY HAYES14850
LAZORLITEL73-1498
MAREMONT7939074
MCI4001, 4001Q, 4014
MIDASBR1100
MIGHTY DISTRIBUTING SYSTEM3101
MOPAR3-1366
MOUNTAIN OFF-ROAD ENTERPRISESNR2
NEWTEK AUTOMOTIVE3101
NORRBIT996-00
Newtek Automotive USA3101
Nissan40206A1155
QUALIS3101
QUALITEE INTERNATIONAL64-76-020
QUALITY BRAND3101
QUINTON HAZELLBDC3149
ROADMATES526511
ROCKHILL3101
SANYONR2
SEARS1797
THE UNIVERSAL GROUP109010
TRANSPARTSBR0102
TRUSTAR476020, R76020
UAP3101
Universal109010
VERA3401279
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX50091
WAGNERBD97057
WAGNER BRAKEBD97057
WORLDPARTSW70-111

RAYBESTOS 9074 Fits Vehicles

  • Nissan 610 (1973)
  • Nissan 510 (1968-1973)
  • Nissan B210 (1974-1975)
