(888) 312-8812 Login SignupRAYBESTOS 8535 Raybestos Specialty - Truck Brake Rotor
$435.09
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 8535 Part Description
Manufacturer
Product Description

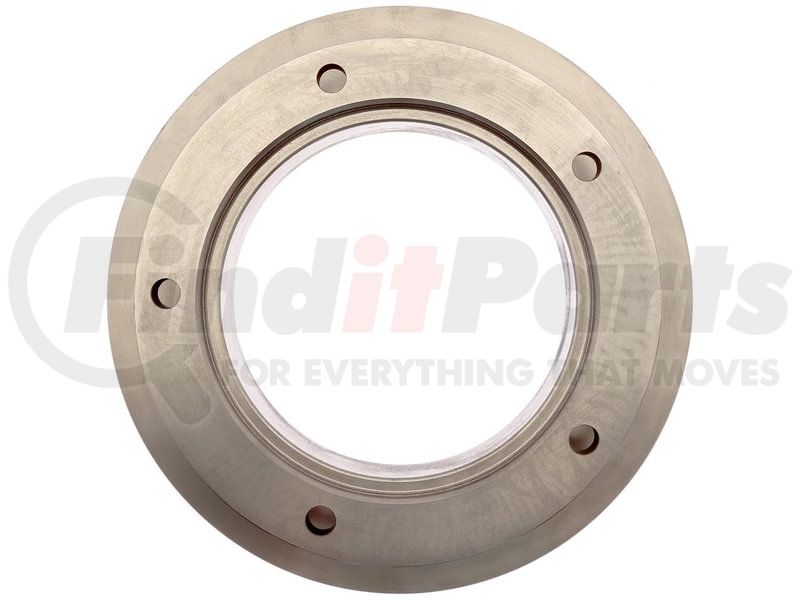

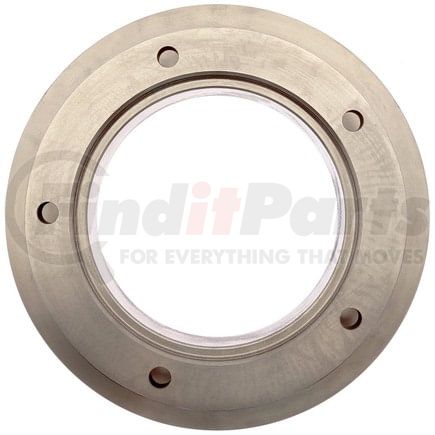

Raybestos Specialty - Truck Brake Rotor
Application Summary
1989-1984 International S1753 Front, 1988-1984 International S1753 Rear, 1985-1980 International S1723 Front, 1985-1980 International S1723 Rear, 1989-1983,1981 International 1654 Front, 1989-1983,1981 International 1654 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 8535 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 8.99 IN |
| Center Hole Diameter | 228.35 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.32 IN |
| Discard Thickness | 33.55 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 10.5 IN |
| Mounting Bolt Hole Circle Diameter | 266.7 MM |
| Mounting Bolt Hole Diameter | 0.651 IN |
| Mounting Bolt Hole Diameter | 16.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.435 IN |
| Nominal Thickness | 36.45 MM |
| Outside Diameter | 15 IN |
| Outside Diameter | 381 MM |
| Overall Height | 4.26 IN |
| Overall Height | 108.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730238913 |
RAYBESTOS 8535 Cross References
| Brand | Part Number |
|---|---|
| 641-0002, 747730238913 | |
| AMERICAN REMANUFACTURED | 89-54000 |
| AUTOSPECIALTY | AR9300, AR9300E |
| BENDIX | 141858 |
| BRAKEBEST | 8535, 8535RGS |
| BrakeBest | 96816RGS |
| CENTRIC | 120.83000, 121.83000 |
| Casting Numbers | 23-103887 |
| Centric Parts | 120.83000, 121.83000 |
| DELPHI | RB619 |
| DURA CORP | BR5605 |
| EUCLID | E-8905 |
| INTERNATIONAL HARVESTER (IHC) | 508526C2 |
| MIGHTY DISTRIBUTING SYSTEM | 5605 |
| Qualis | 5605 |
| THE UNIVERSAL GROUP | 106050 |
| UAP | 5605 |
| Universal | 106050 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50597 |
| WAGNER | BD126402 |
RAYBESTOS 8535 Fits Vehicles
- International 1754 (1979-1989)
- International 1724 (1979-1985)
- International S1854 (1981-1982)
- International 1652UPS (1990-1991, 1993, 1995-1997)
- International 1654 (1981, 1983-1989)
- International 1854 (1979-1982)
- International 1824 (1979-1982)
- International S1853 (1981-1982)
- International S1824 (1980-1982)
- International S1823 (1980-1982)
- International S1754 (1981-1989)
- International S1753 (1984-1989)
- International S1724 (1980-1984)
- International S1723 (1980-1985)
- International S1654LP (1988-1989)
- International S1654 (1984-1989)
- International S1624 (1980-1982)
- International M1600 Metro II (1987-1989)
- International 1652SC (1986-1998)
