(888) 312-8812 Login SignupRAYBESTOS 56502 Raybestos Specialty - Truck Brake Rotor
$431.54
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 56502 Part Description
Manufacturer
Product Description

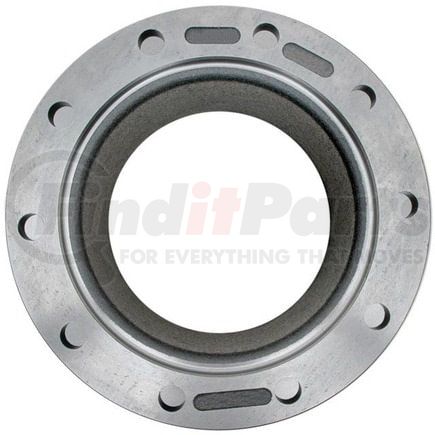

Raybestos Specialty - Truck Brake Rotor
Application Summary
2002-1997 GMC C7500 Topkick Rear, 1996-1990 GMC C7000 Topkick Rear, 1991-1980 Chevrolet B60 Rear, 1991-1980 GMC B6000 Rear, 1996-1990 Chevrolet C70 Kodiak Rear, 2002-1997 Chevrolet C7500 Kodiak Rear, 1996-1990 GMC C6000 Topkick Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 56502 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 9.499 IN |
| Center Hole Diameter | 241.25 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.42 IN |
| Discard Thickness | 36.05 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 11.25 IN |
| Mounting Bolt Hole Circle Diameter | 285.75 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.53 IN |
| Nominal Thickness | 38.85 MM |
| Outside Diameter | 15.37 IN |
| Outside Diameter | 390.4 MM |
| Overall Height | 6.18 IN |
| Overall Height | 156.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999790132 |
RAYBESTOS 56502 Cross References
| Brand | Part Number |
|---|---|
| 25173645, 30999790132 | |
| ACDELCO | 177-817, 177-821 |
| ADVANCE AUTO PARTS | YH141606, YH141606C, YH141606P |
| AMERICAN REMANUFACTURED | 89-52002 |
| AUTOSPECIALTY | AR9002, AR9002E |
| BENDIX | 141606 |
| BRAKEBEST | 56502, 56502RGS |
| CENTRIC | 120.80002, 121.80002 |
| Casting Numbers | 23-122693 |
| Centric Parts | 120.80002, 121.80002 |
| DAYTON WALTHER | 23122693 |
| DELPHI | RB746 |
| DURA CORP | BR5589 |
| DuraGo | BR5589 |
| EUCLID | E-4246 |
| GM | 15514492, 15619578, 15619626 |
| GREN | 663702 |
| GUNITE | D5069 |
| General Motors | 15514492, 15619578, 15619626 |
| MIGHTY DISTRIBUTING SYSTEM | 5589 |
| NEWTEK AUTOMOTIVE | 5589 |
| Newtek Automotive USA | 5589 |
| QUALIS | 5589 |
| THE UNIVERSAL GROUP | 101890 |
| UAP | 5589 |
| Universal | 101890 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50587 |
| WAGNER | BD125338 |
| WAGNER BRAKE | BD125338, BD125377 |
RAYBESTOS 56502 Fits Vehicles
- GMC T7500 (1997-2002)
- GMC T6500 (1997-2002)
- Chevrolet T7500 (1997-2002)
- Isuzu FTR (1996-2002)
- Isuzu FSR (1996-2002)
- Chevrolet T6500 (1997-2002)
- GMC B6000 (1980-1991)
- GMC C7500 Topkick (1997-2002)
- GMC C6500 Topkick (1997-2002)
- Chevrolet B60 (1980-1991)
- Chevrolet C6500 Kodiak (1997-2002)
- Chevrolet C7500 Kodiak (1997-2002)
- GMC C7000 Topkick (1990-1996)
- GMC C7000 (1990)
- GMC C6000 Topkick (1990-1996)
- GMC C5000 (1990)
- Chevrolet C70 Kodiak (1990-1996)
- GMC C5000 Topkick (1990-1991)
- Chevrolet C60 Kodiak (1990-1996)
- Chevrolet C5500 Kodiak (1990-1991)
- Chevrolet C50 (1990)
- GMC C6000 (1988-1990)
- Chevrolet C70 (1988-1990)
- Chevrolet C60 (1988-1990)
