(888) 312-8812 Login SignupRAYBESTOS 66203R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 66203R Part Description
Manufacturer
Product Description

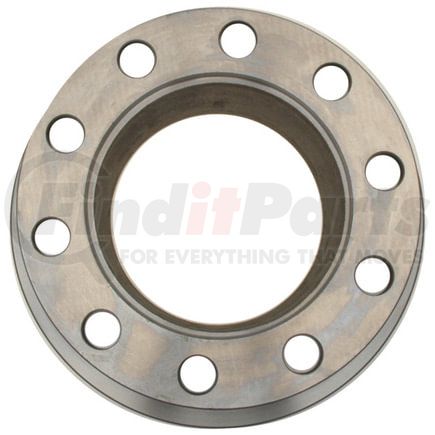

Raybestos R-Line Brake Rotor
Application Summary
1989-1984 Ford C8000 Front, 1986-1984 Ford C800 Front
RAYBESTOS 66203R Specifications
Product Attributes
| Center Hole Diameter | 8.75 IN |
| Center Hole Diameter | 222.25 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.63 IN |
| Discard Thickness | 41.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 11.25 IN |
| Mounting Bolt Hole Circle Diameter | 285.75 MM |
| Mounting Bolt Hole Diameter | 11.25 IN |
| Mounting Bolt Hole Diameter | 285.75 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.75 IN |
| Nominal Thickness | 44.45 MM |
| Outside Diameter | 15.62 IN |
| Outside Diameter | 396.75 MM |
| Overall Height | 6.36 IN |
| Overall Height | 161.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00829352465332 |
RAYBESTOS 66203R Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | D5HZ1102A |
| Gunite | R3065X |
| Mighty Distributing System | 54066 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51253 |
| BrakeBest | 66203, 66203R, 66203RGS, 66839RGS |
| AutoZone | 54066 |
| Casting Numbers | 325798 |
| Dura Corp | BR54066 |
| Newtek Automotive USA | 54066 |
| UAP | 54066 |
| Centric Parts | 120.79029, 121.79029 |
| Qualis | 54066 |
RAYBESTOS 66203R Fits Vehicles
- Ford C800 (1984-1986)
- Ford C8000 (1984-1989)
RAYBESTOS 66203R Cross References
We have 16 alternatives for the 66203R by RAYBESTOS:
