(888) 312-8812 Login SignupRAYBESTOS 8510 Raybestos Specialty - Truck Brake Rotor
$196.47
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 8510 Part Description
Manufacturer
Product Description

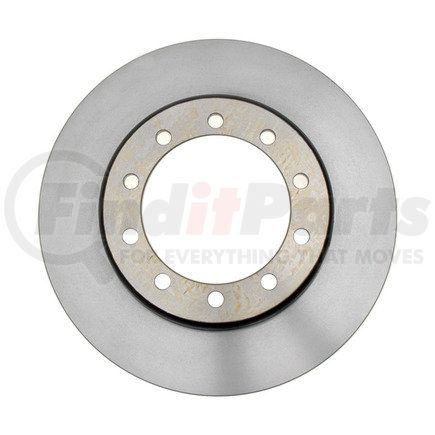

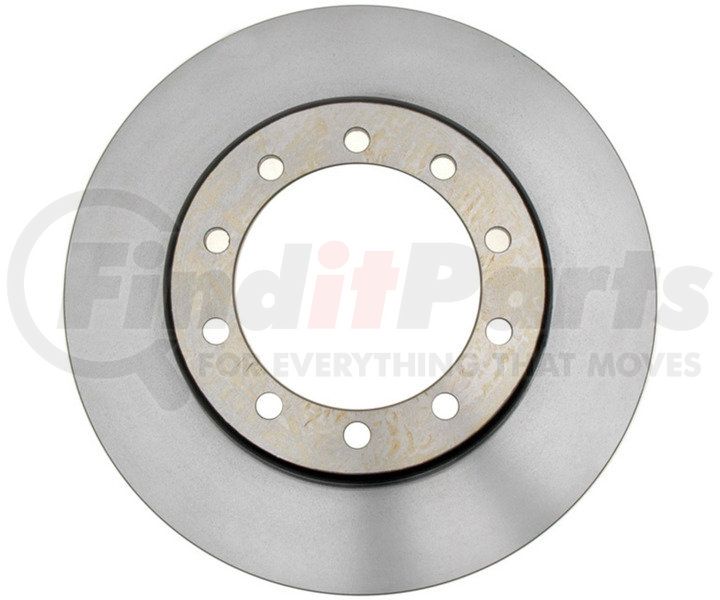

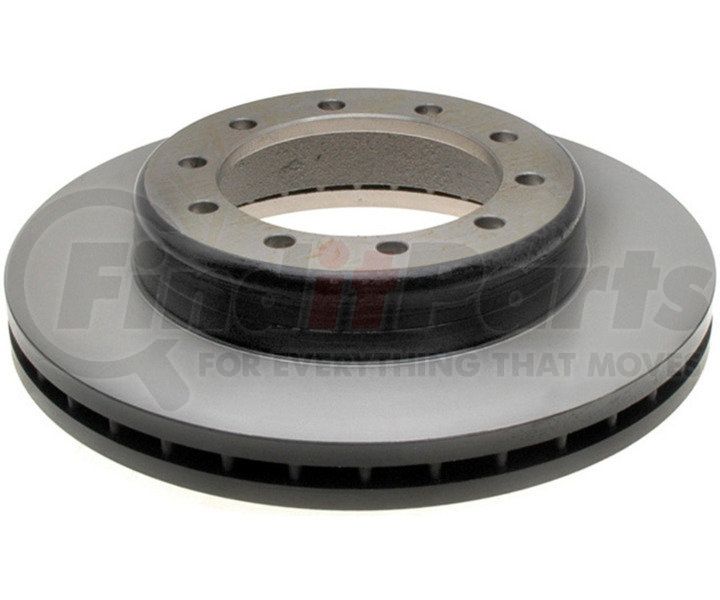

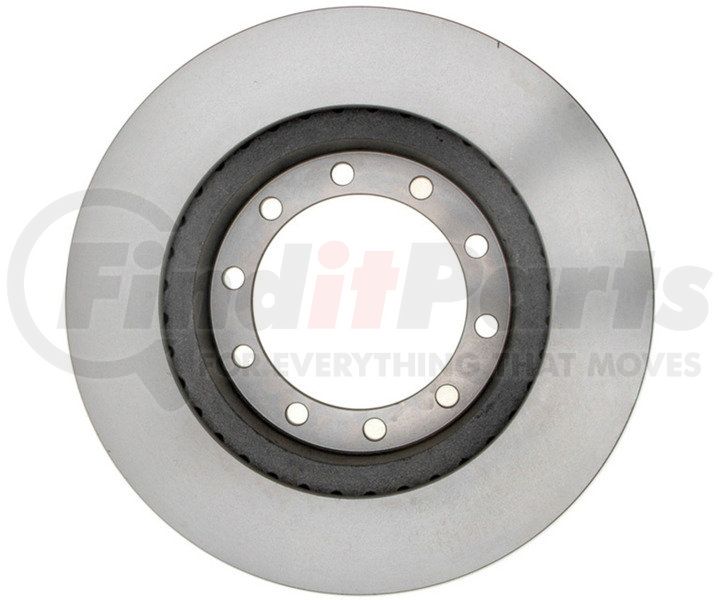

Raybestos Specialty - Truck Brake Rotor
Application Summary
2002-1997 GMC C7500 Topkick Rear, 1996-1990 GMC C7000 Topkick Front, 1996-1990 GMC C7000 Topkick Rear, 1991-1980 Chevrolet B60 Front, 1991-1980 Chevrolet B60 Rear, 1991-1980 GMC B6000 Front, 1991-1980 GMC B6000 Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 8510 Specifications
Product Attributes
| Center Hole Diameter | 6.003 IN |
| Center Hole Diameter | 152.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.42 IN |
| Discard Thickness | 36.05 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 7.25 IN |
| Mounting Bolt Hole Circle Diameter | 184.15 MM |
| Mounting Bolt Hole Diameter | 7.25 IN |
| Mounting Bolt Hole Diameter | 184.15 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.535 IN |
| Nominal Thickness | 39 MM |
| Outside Diameter | 15.37 IN |
| Outside Diameter | 390.4 MM |
| Overall Height | 3.4 IN |
| Overall Height | 86.35 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999079350 |
RAYBESTOS 8510 Cross References
| Brand | Part Number |
|---|---|
| 12567709, 30999079350 | |
| ACDELCO | 177-814, 177-823 |
| ADVANCE AUTO PARTS | 141272, YH141272 |
| AMERICAN REMANUFACTURED | 789-52001, 89-52001 |
| AUTOSPECIALTY | AR9001, AR9001E |
| AUTOXTRA | AX901130 |
| AUTOZONE | 5583 |
| Autoxtra | AX5583 |
| BENDIX | 141272, 141607 |
| BRAKE HEADQUARTERS | BR55830 |
| BRAKEBEST | 81-125090, 8510, 8510R, 8510RGS, BD125090 |
| CALIFORNIA DRUM & ROTOR | 125090 |
| CENTRIC | 120.80001, 121.80001, 126.80001CSL, 126.80001CSR, 126.80001SL, 126.80001SR, 320.80001, 120.80012 |
| CENTURY | 8518 |
| Casting Numbers | 210582-C, 23-122729, 325331, 5159 |
| DAYTON WALTHER | 23-122729 |
| DELPHI | RB741 |
| DURA CORP | BR5583, BR901130 |
| EIS BRAKES | D8510 |
| EUCLID | E-4230 |
| EUROROTOR | 5583 |
| GM | 15514357, 15514406, 15619970 |
| GREN | 663402 |
| GUNITE | D6052, R6052 |
| General Motors | 15514357, 15514406, 15619970 |
| MAGMA PRODUCTS | PSR227284 |
| MERITOR | 23122729002 |
| MIDLAND | 85858 |
| MIGHTY DISTRIBUTING SYSTEM | 5583 |
| N/A | 120.80001, 121.80001, 126.80001CSL, 126.80001CSR, 126.80001SL, 126.80001SR, 320.80001 |
| NEWTEK AUTOMOTIVE | 5583 |
| Newtek Automotive USA | 5583 |
| PEP BOYS | 901130G |
| PRONTO | BR5583 |
| QUALIS | 5583 |
| QUALITY BRAND | 122729 |
| ROCKHILL | 5583 |
| STANDARD ROTORS AND DRUMS | 5583 |
| THE UNIVERSAL GROUP | 101830 |
| UAP | 5583 |
| Universal | 101830 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50584 |
| WABCO | PS125090 |
| WABCO - Archived | PS125090 |
| WAGNER | BD125090 |
| WAGNER BRAKE | BD125090, BD125488 |
| WEBB | 54301F |
| WINHERE | YH2567 |
RAYBESTOS 8510 Fits Vehicles
- GMC T6500 (1998-2002)
- GMC T7500 (1998-2002)
- Chevrolet T7500 (1998-2002)
- Chevrolet T6500 (1997-2002)
- GMC B7 (1993-2002)
- GMC B6000 (1980-1991)
- GMC C7500 Topkick (1997-2002)
- GMC C6500 Topkick (1997-2002)
- Chevrolet B60 (1980-1991)
- Chevrolet C7500 Kodiak (1997-2002)
- Chevrolet C6500 Kodiak (1997-2002)
- GMC C7000 Topkick (1990-1996)
- GMC C6000 Topkick (1990-1996)
- GMC C5000 Topkick (1990-1991)
- GMC C5000 (1990)
- Chevrolet C70 Kodiak (1990-1996)
- Chevrolet C60 Kodiak (1990-1996)
- Chevrolet C5500 Kodiak (1990-1991)
- GMC C6000 (1983-1990)
- GMC C7000 (1983-1990)
- Chevrolet C50 (1983-1990)
- Chevrolet C60 (1983-1990)
- Chevrolet C70 (1983-1990)
