(888) 312-8812 Login SignupRAYBESTOS 980414 Raybestos Specialty - Truck Brake Rotor
$162.04
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980414 Part Description
Manufacturer
Product Description

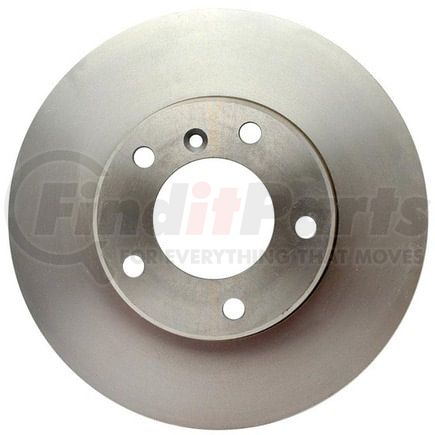

Raybestos Specialty - Truck Brake Rotor
Application Summary
2008-2002 Mercedes-Benz G500 Front, 2004-2003 Mercedes-Benz G55 AMG Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980414 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.347 IN |
| Center Hole Diameter | 85 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.079 IN |
| Discard Thickness | 27.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.118 IN |
| Mounting Bolt Hole Circle Diameter | 130 MM |
| Mounting Bolt Hole Diameter | 0.586 IN |
| Mounting Bolt Hole Diameter | 14.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.402 IN |
| Outside Diameter | 315 MM |
| Overall Height | 3.268 IN |
| Overall Height | 83 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352374146 |
RAYBESTOS 980414 Cross References
| Brand | Part Number |
|---|---|
| 829352374146, 120.35056 | |
| ADVANCE AUTO PARTS | YH200910, YH200910C, YH200910P |
| ATE BRAKE PRODUCTS | 430217, SP30217 |
| AUTOZONE | 76611, 76611DG, 76612 |
| BOSCH | 36011511 |
| BRAKEBEST | 36011511, 980414, 980414RGS |
| BREMBO | 09.A917.10, 25769 |
| Brembo | 09.A917.11 |
| CENTRIC | 120.35056, 121.35056, 126.35056CSL, 126.35056CSR, 126.35056SL, 126.35056SR, 127.35056L, 127.35056R, 128.35056CL, 128.35056CR, 128.35056L, 128.35056R |
| Centric Parts | 120.35056, 121.35056, 126.35056CSL, 126.35056CSR, 126.35056SL, 126.35056SR, 127.35056L, 127.35056R, 128.35056CL, 128.35056CR, 128.35056L, 128.35056R |
| DURA CORP | BR34293 |
| DuraGo | BR34293 |
| MERCEDES-BENZ | 4634210012 |
| NEWTEK AUTOMOTIVE | 34293 |
| Newtek Automotive USA | 34293 |
| PROMAX | 14-34293 |
| Qualis | 34293 |
| UAP | 34293 |
| VAICO | V3080074 |
| WAGNER | BD180032 |
| WAGNER BRAKE | BD180032 |
| WINHERE | 6620446 |
RAYBESTOS 980414 Fits Vehicles
- Mercedes-Benz G55 AMG (2003-2011)
- Mercedes-Benz G500 (2002-2008)
