(888) 312-8812 Login SignupRAYBESTOS 980028 Raybestos Specialty - Street Performance Brake Rotor
$142.71
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980028 Part Description
Manufacturer
Product Description

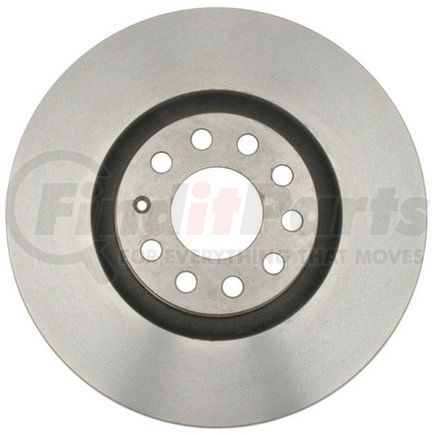

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2004-2002 Audi A6 Quattro Front, 2002-2000 Audi S4 Front, 2004-2002 Audi A6 Front, 2003-2002 Audi S6 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980028 Specifications
Product Attributes
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.638 IN |
| Outside Diameter | 321 MM |
| Overall Height | 1.831 IN |
| Overall Height | 46.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352038383 |
RAYBESTOS 980028 Cross References
| Brand | Part Number |
|---|---|
| 829352038383, 120.33096 | |
| ADVANCE AUTO PARTS | YH145408, YH145408C, YH145408P |
| ALTROM IMPORTS | 8D0615301M |
| ATE BRAKE PRODUCTS | SP30113, SP30174, 430113, 430174 |
| AUDI | 8D0615301K, 8D0615301M |
| AUTOSPECIALTY | EBR637 |
| AUTOXTRA | 80980028 |
| AUTOZONE | 34204DG, 34204DL |
| AutoZone | 34204 |
| BENDIX | 145408 |
| BOSCH | 14010019 |
| BRAKEBEST | 14010019, 980028, 980028FZN, 980028R, 980028RGS |
| BREMBO | 09.8689.11, 25704, 09.A598.11 |
| CENTRIC | 120.33066, 120.33096, 121.33066, 125.33066, 125.33096CRY |
| Casting Numbers | 325963, 8D0615301K |
| Centric Parts | 120.33066, 120.33096, 121.33066, 125.33066, 125.33096CRY |
| DURA CORP | BR34204 |
| MAGMA PRODUCTS | PSR583044 |
| MIGHTY DISTRIBUTING SYSTEM | 34204 |
| NAPA BRAKES | SDK6400, TSR4258, TSR7348 |
| NEWTEK AUTOMOTIVE | 34204 |
| Newtek Automotive USA | 34204 |
| PILENGA | V874 |
| POWERSTOP | EBR637EVC |
| PROMAX | 14-34204 |
| PRONTO | BR900686 |
| QUALIS | 34204 |
| QUINTON HAZELL | BDC5278 |
| TRW | DF4258S, DF4264S |
| UAP | 34204 |
| VAICO | V1080074 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51613 |
| WAGNER BRAKE | BD126551 |
| WINHERE | 662909 |
RAYBESTOS 980028 Fits Vehicles
- Audi S6 (2002-2003)
- Audi A6 Quattro (2002-2004)
- Audi A6 (2002-2004)
- Audi Allroad Quattro (2001-2005)
- Audi S4 (2000-2002)
