RAYBESTOS 66824 Part Description
Manufacturer
Product Description

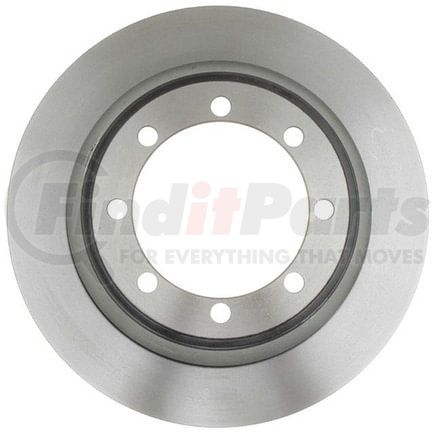

Raybestos Specialty - Truck Brake Rotor
Application Summary
2004-1999 Ford F-350 Super Duty Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 66824 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.73 IN |
| Center Hole Diameter | 120.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.591 IN |
| Mounting Bolt Hole Circle Diameter | 142 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.18 IN |
| Nominal Thickness | 29.95 MM |
| Outside Diameter | 12.835 IN |
| Outside Diameter | 326 MM |
| Overall Height | 4.44 IN |
| Overall Height | 112.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730618302 |
RAYBESTOS 66824 Cross References
| Brand | Part Number |
|---|---|
| 74221082, 747730618302 | |
| ADVANCE AUTO PARTS | 145280, YH145280C, YH145280P, YH145280 |
| AMERICAN REMANUFACTURED | 89-42070 |
| AUTOPARTSOURCE | 492255 |
| AUTOSPECIALTY | AR8570, AR8570E |
| AUTOZONE | 54084, 54084DG, DL54084 |
| BENDIX | 145280 |
| BRAKEBEST | 20010341, 66824, 66824FZN, 66824R, 66824RGS, 81-125644, BD125644 |
| BREMBO | 09.8863.85, 27116, 09.D453.10 |
| CALIFORNIA DRUM & ROTOR | 125644 |
| CENTRIC | 120.65070, 120.65070CRY, 121.65070, 125.65070, 126.65070CSL, 126.65070CSR, 126.65070SL, 126.65070SR, 127.65070L, 127.65070R, 320.65070, 320.65070F, 120.6507 |
| CONTINENTAL-CONTITECH | CW30711 |
| Casting Numbers | 211248-C, 325501 |
| Centric Parts | 120.65070, 120.65070CRY, 121.65070, 125.65070, 126.65070CSL, 126.65070CSR, 126.65070SL, 126.65070SR, 127.65070L, 127.65070R, 320.65070, 320.65070F |
| DURA CORP | BR54084 |
| DuraGo | BR54084, BR54084-02 |
| EUCLID | E-12343 |
| Eurorotor | 54419 |
| FORD | F81Z2C026EA |
| GUARDIAN | 52-125644 |
| MAGMA PRODUCTS | PSR205192 |
| MIGHTY DISTRIBUTING SYSTEM | 54084 |
| MONROE BRAKES | BD125644 |
| MOTORCRAFT | BRR283, BRR96 |
| Motorcraft | NBRR108 |
| NEOTEK | 1071008GF |
| NEWTEK AUTOMOTIVE | 54084 |
| Newtek Automotive USA | 54084 |
| PARTS MASTER | P125644 |
| PEP BOYS | 54084G |
| POWERSTOP | AR8570EVC |
| PROMAX | 14-54084 |
| PRONTO | BR54084 |
| QUALIS | 54084 |
| QUALITY BRAND | 54084, Q4118 |
| STANDARD ROTORS AND DRUMS | 54084 |
| THE UNIVERSAL GROUP | 102023 |
| UAP | 54084 |
| Ultra Brake | 54419 |
| Universal | 102023 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51300 |
| WABCO | PS125644 |
| WABCO - Archived | PS125644 |
| WAGNER | BD125644E, BD125644 |
| WAGNER BRAKE | BD125644 |
| WINHERE | 662657, YH2657 |
| WORLDPAC | 1407-25827, 1427-719653 |
| Wagner Brake | BD125644E |
RAYBESTOS 66824 Fits Vehicles
- Ford F-350 Super Duty (1999-2004)
