RAYBESTOS 980193 Part Description
Manufacturer
Product Description

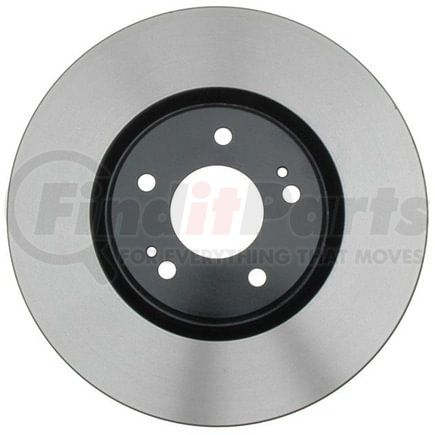

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2006-2003 Mitsubishi Lancer Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980193 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.718 IN |
| Center Hole Diameter | 69.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.173 IN |
| Discard Thickness | 29.8 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 12.6 IN |
| Outside Diameter | 320.05 MM |
| Overall Height | 1.71 IN |
| Overall Height | 43.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352218648 |
RAYBESTOS 980193 Cross References
| Brand | Part Number |
|---|---|
| 78077814, 829352218648 | |
| ADVANCE AUTO PARTS | YH145539, YH145539C, YH145539P |
| AUTOZONE | 31345, 31345DG |
| BENDIX | 145539 |
| BRAKEBEST | 980193, 980193RGS |
| Brembo | 09.7142.31 |
| CENTRIC | 120.46064, 121.46064, 125.46064, 125.46064CRY, 126.46064CSL, 126.46064CSR, 126.46064SL, 126.46064SR, 127.46064CL, 127.46064CR, 127.46064L, 127.46064R, 128.46064CL, 128.46064CR, 128.46064L, 128.46064R, 227.46064L, 227.46064R, 320.46064C, 320.46064H |
| Casting Numbers | 211594-C |
| Centric Parts | 120.46064, 121.46064, 125.46064, 125.46064CRY, 126.46064CSL, 126.46064CSR, 126.46064SL, 126.46064SR, 127.46064CL, 127.46064CR, 127.46064L, 127.46064R, 128.46064CL, 128.46064CR, 128.46064L, 128.46064R, 227.46064L, 227.46064R, 320.46064C, 320.46064H |
| DURA CORP | BR31345 |
| DuraGo | BR31345 |
| MAGMA PRODUCTS | PSR403009 |
| MIGHTY DISTRIBUTING SYSTEM | 31345 |
| MITSUBISHI | 4615A031, MR370723 |
| NEWTEK AUTOMOTIVE | 31345 |
| Newtek Automotive USA | 31345 |
| PROMAX | 14-31345 |
| PRONTO | BR31345 |
| QUALIS | 31345 |
| QUINTON HAZELL | BDC5064 |
| UAP | 31345 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51558 |
| WAGNER | BD126127 |
| WAGNER BRAKE | BD126127 |
| WINHERE | 6620024 |
RAYBESTOS 980193 Fits Vehicles
- Mitsubishi Lancer (2003-2006)
