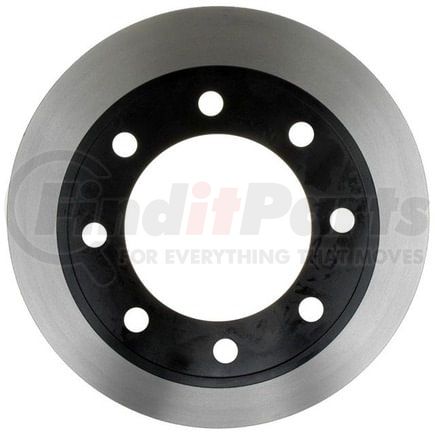

(888) 312-8812 Login SignupRAYBESTOS 680394 Raybestos Specialty - Truck Brake Rotor
$30749
Limited availability at this price!
In Stock
Get as soon as Tuesday, Oct 6
RAYBESTOS 680394 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2012-2005 Ford F-250 Super Duty Rear, 2012-2005 Ford F-350 Super Duty Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring:Optimal coolingReduced fadeLess noiseIncreased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680394 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.996 IN |
| Center Hole Diameter | 126.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.28 IN |
| Discard Thickness | 32.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.638 IN |
| Mounting Bolt Hole Diameter | 16.2 MM |
| Nominal Thickness | 1.34 IN |
| Nominal Thickness | 34.05 MM |
| Outside Diameter | 13.386 IN |
| Outside Diameter | 340 MM |
| Overall Height | 4.976 IN |
| Overall Height | 126.4 MM |
| Salability Restrictions | No |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352403624 |
RAYBESTOS 680394 Cross References
| Brand | Part Number |
|---|---|
| 908956MM, 829352403624 | |
| ADVANCE AUTO PARTS | 145730, G09407SD, YH145730, YH145730C, YH145730P |
| AUTOPARTSOURCE | 592795 |
| AUTOXTRA | AX54141 |
| AUTOZONE | 54141, 54141DG |
| BENDIX | PRT5730, SDR5730 |
| BOSCH | 20010461 |
| BRAKEBEST | 20010461, 680394, 680394FZN, 680394PER, 680394R, 680394RGS, BD126274 |
| BREMBO | 09.B544.10 |
| CENTRIC | 120.65113, 120.65113CRY, 121.65113, 126.65113CSL, 126.65113CSR, 126.65113SL, 126.65113SR, 127.65113CL, 127.65113CR, 127.65113L, 127.65113R, 128.65113L, 128.65113R, 227.65113L, 227.65113R, 320.65113, 320.65113F, 321.65113 |
| Casting Numbers | 211761-C, 326247, 5C342C026A |
| Centric Parts | 120.65113, 120.65113CRY, 121.65113, 126.65113CSL, 126.65113CSR, 126.65113SL, 126.65113SR, 127.65113CL, 127.65113CR, 127.65113L, 127.65113R, 128.65113L, 128.65113R, 227.65113L, 227.65113R, 320.65113, 320.65113F, 321.65113 |
| DURA CORP | BR54141, BR5414102 |
| DuraGo | BR54141, BR5414102, BR54141-02 |
| Eurorotor | 54427 |
| FORD | 5C3Z2C026AA, 5C3Z2C026AB, 5U2Z1V125MC, 6C3Z2C026AA, 9C3Z2C026A |
| MAGMA PRODUCTS | PSR205224 |
| MONROE BRAKES | BD126274 |
| MOTORCRAFT | BRR142, NBRR8 |
| Motorcraft | BRR225 |
| NEOTEK | 1071089GF |
| NEWTEK AUTOMOTIVE | 54141 |
| Newtek Automotive USA | 54141 |
| POWERSTOP | AR85116EVC |
| PROMAX | 14-54141 |
| PRONTO | BR54141 |
| QUALIS | 44317 |
| Qualis | 54141 |
| TopNotch | TN680394GEO |
| UAP | 2054141, 54141 |
| Ultra Brake | 54427 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51791 |
| WABCO | PS126274 |
| WABCO - Archived | PS126274 |
| WAGNER | BD126274, BD126274E |
| WAGNER BRAKE | BD126274, BD126274E |
| WINHERE | 6620626 |
| WORLDPAC | 1407-80391, 1427-731819 |
RAYBESTOS 680394 Fits Vehicles
- Ford F-250 Super Duty (2005-2012)
- Ford F-350 Super Duty (2005-2012)
