RAYBESTOS 580104 Part Description
Manufacturer
Product Description

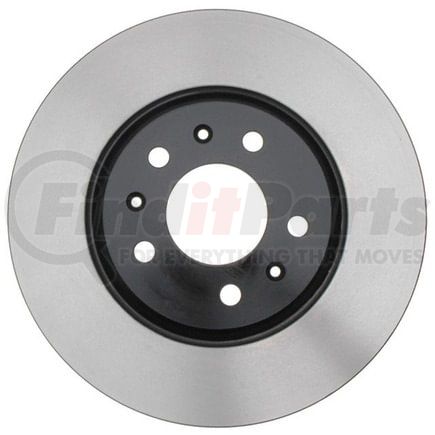

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2007-2003 Cadillac CTS Front, 2008-2005 Cadillac STS Front, 2004-2003 Cadillac Seville Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 580104 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.79 IN |
| Center Hole Diameter | 70.85 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.209 IN |
| Discard Thickness | 30.7 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.27 IN |
| Nominal Thickness | 32.25 MM |
| Outside Diameter | 11.92 IN |
| Outside Diameter | 302.75 MM |
| Overall Height | 2.04 IN |
| Overall Height | 51.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352268155 |
RAYBESTOS 580104 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-905 |
| ADVANCE AUTO PARTS | YH145593 |
| AUTOXTRA | 80580104, AX55096 |
| AUTOZONE | 55096, 55096DG |
| BENDIX | 145593 |
| BRAKEBEST | 580104, 580104FZN, 580104R, 580104RGS |
| BREMBO | 09.B607.10, 27325, 09B60710 |
| CENTRIC | 120.62070, 121.62070, 125.62070, 125.62070CRY, 126.62070CSL, 126.62070CSR, 126.62070SL, 126.62070SR, 127.62070CL, 127.62070CR, 127.62070L, 127.62070R, 128.62070CL, 128.62070CR, 128.62070L, 128.62070R, 320.62070C, 320.62070H |
| Casting Numbers | 18060380, 18083452, 211662-C, 326438 |
| Centric Parts | 120.62070, 121.62070, 125.62070, 125.62070CRY, 126.62070CSL, 126.62070CSR, 126.62070SL, 126.62070SR, 127.62070CL, 127.62070CR, 127.62070L, 127.62070R, 128.62070CL, 128.62070CR, 128.62070L, 128.62070R, 320.62070C, 320.62070H |
| DURA CORP | BR55096, BR5509602 |
| DuraGo | BR55096, BR5509602 |
| GM | 18060686, 88964102 |
| General Motors | 18060686, 88964102 |
| MIGHTY DISTRIBUTING SYSTEM | 55096 |
| NEOTEK | 107292GF |
| NEWTEK AUTOMOTIVE | 55096 |
| Newtek Automotive USA | 55096 |
| POWERSTOP | AR82103EVC |
| PROMAX | 14-55096 |
| PRONTO | BR55096 |
| Qualis | 55096 |
| Ultra Brake | 55610 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51715 |
| WABCO | PS126021 |
| WABCO - Archived | PS126021 |
| WAGNER | BD126021E, BD126021 |
| WAGNER BRAKE | BD126021 |
| WINHERE | 6620491 |
| WORLDPAC | 1407-25844 |
| Wagner Brake | BD126021E |
RAYBESTOS 580104 Fits Vehicles
- Cadillac STS (2005-2008)
- Cadillac Seville (2003-2004)
- Cadillac CTS (2003-2007)
