(888) 312-8812 Login SignupRAYBESTOS 980185 Raybestos Specialty - Street Performance Brake Rotor
$17199
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Jul 3
RAYBESTOS 980185 Part Description
Manufacturer
Product Description

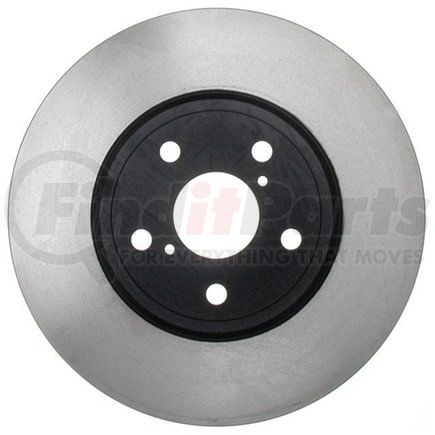

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2006-2001 Lexus LS430 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980185 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.441 IN |
| Center Hole Diameter | 62 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 114.3 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.402 IN |
| Outside Diameter | 315 MM |
| Overall Height | 1.976 IN |
| Overall Height | 50.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352541173 |
RAYBESTOS 980185 Cross References
| Brand | Part Number |
|---|---|
| AST24677, 829352541173 | |
| ADVANCE AUTO PARTS | YH200386, YH200386C |
| AUTOXTRA | AX900079 |
| AUTOZONE | 083-2909, 31600, 31600DG |
| BRAKEBEST | 50011458, 980185, 980185R, 980185RGS |
| BREMBO | 09.B454.10 |
| Brembo | 09.B454.11 |
| CENTRIC | 120.44122, 121.44122, 126.44122SL, 126.44122SR, 127.44122CL, 127.44122CR, 127.44122L, 127.44122R, 128.44122CL, 128.44122CR, 128.44122L, 128.44122R, 320.44122 |
| Casting Numbers | 211586-C |
| Centric Parts | 120.44122, 121.44122, 126.44122SL, 126.44122SR, 127.44122CL, 127.44122CR, 127.44122L, 127.44122R, 128.44122CL, 128.44122CR, 128.44122L, 128.44122R, 320.44122 |
| DURA CORP | BR31456, BR900079 |
| DuraGo | 900079, BR900079 |
| MAGMA PRODUCTS | PSR563073 |
| NEOTEK | 106383GF |
| NEWTEK AUTOMOTIVE | 31456 |
| Newtek Automotive USA | 31456 |
| PROMAX | 14-31456 |
| Qualis | 31456 |
| TOYOTA | 4351250160, 4351250220, 4351250220A, 4351250230 |
| TRW | DF7831 |
| TopNotch | TN980185GEO |
| UAP | 31456 |
| WABCO | PS126227 |
| WABCO - Archived | PS126227 |
| WAGNER | BD126227E, BD126227 |
| WAGNER BRAKE | BD126227 |
| WINHERE | 6620437 |
| WORLDPAC | 1407-78847, 1427-719980 |
| Wagner Brake | BD126227E |
RAYBESTOS 980185 Fits Vehicles
- Lexus LS430 (2001-2006)
RAYBESTOS 980185 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980185 Questions & Answers
No questions yet
Be the first to ask a question about this product!
