(888) 312-8812 Login SignupRAYBESTOS 780152 Raybestos Specialty - Truck Brake Rotor
$17099
Limited availability at this price!
In Stock
Get it by Wednesday, Aug 12
RAYBESTOS 780152 Part Description
Manufacturer
Product Description

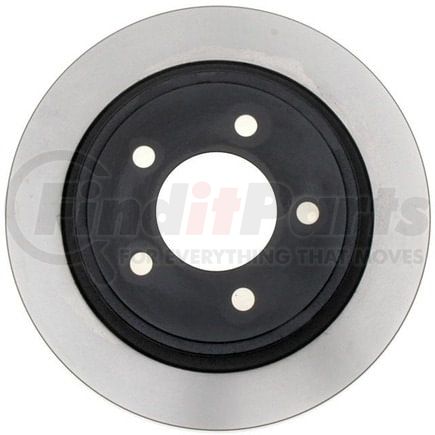

Raybestos Specialty - Truck Brake Rotor
Application Summary
2008-2004 Chrysler Pacifica Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 780152 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.23 IN |
| Center Hole Diameter | 82.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.492 IN |
| Discard Thickness | 12.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.604 IN |
| Mounting Bolt Hole Diameter | 15.35 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.551 IN |
| Nominal Thickness | 14 MM |
| Outside Diameter | 12.28 IN |
| Outside Diameter | 311.9 MM |
| Overall Height | 2.21 IN |
| Overall Height | 56.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730872377 |
RAYBESTOS 780152 Cross References
| Brand | Part Number |
|---|---|
| 77416730, 747730872377 | |
| ADVANCE AUTO PARTS | 145496, YH145496, YH145496C, YH145496P |
| AUTOPARTSOURCE | 491360 |
| AUTOXTRA | 126156, 80780152, AX53018 |
| AUTOZONE | 53018, 53018DG |
| BENDIX | 145496 |
| BOSCH | 16010213 |
| BRAKEBEST | 16010213, 780152, 780152FZN, 780152R, 780152RGS, BD126156 |
| Brembo | 08.B992.10 |
| CENTRIC | 120.63057, 121.63057, 126.63057SL, 126.63057SR, 127.63057L, 127.63057R, 128.63057CL, 128.63057CR, 128.63057L, 128.63057R, 320.63057, 320.63057F |
| CHRYSLER | 04721240AB, 04721240AC, 04721240AF, 4721240AB, 4721240AC, 4721240AF |
| Casting Numbers | 204202698, 211511-DP, 326205 |
| Centric Parts | 120.63057, 121.63057, 126.63057SL, 126.63057SR, 127.63057L, 127.63057R, 128.63057CL, 128.63057CR, 128.63057L, 128.63057R, 320.63057, 320.63057F |
| DURA CORP | BR53018, BR90232 |
| DuraGo | BR53018 |
| MAGMA PRODUCTS | PSR145171 |
| MIGHTY DISTRIBUTING SYSTEM | 53018 |
| NEWTEK AUTOMOTIVE | 53018 |
| Newtek Automotive USA | 53018 |
| POWERSTOP | AR8759EVC |
| PROMAX | 14-53018 |
| PRONTO | BR53018 |
| QUALIS | 53018 |
| QUALITY BRAND | Q4095 |
| STANDARD ROTORS AND DRUMS | 53018 |
| TopNotch | TN780152GEO |
| UAP | 53018 |
| Ultra Brake | 53121 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51582 |
| WABCO | PS126156 |
| WABCO - Archived | PS126156 |
| WAGNER | BD125483, BD126156E |
| WAGNER BRAKE | BD126156 |
| WINHERE | 661631 |
| WORLDPAC | 1407-79056 |
| Wagner Brake | BD126156E |
RAYBESTOS 780152 Fits Vehicles
- Chrysler Pacifica (2004-2008)
