RAYBESTOS 96340 Part Description
Manufacturer
Product Description

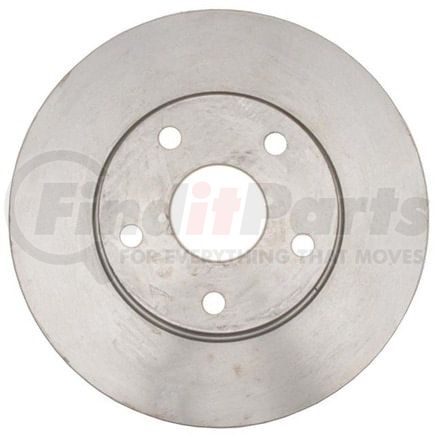

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1998-1992 Lexus SC300 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96340 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.442 IN |
| Center Hole Diameter | 62.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.023 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 114.3 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 10.82 IN |
| Outside Diameter | 274.85 MM |
| Overall Height | 1.99 IN |
| Overall Height | 50.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999545336 |
RAYBESTOS 96340 Cross References
| Brand | Part Number |
|---|---|
| 22-18014, 30999545336 | |
| ADVANCE AUTO PARTS | 141797, YH141797, YH141797C |
| AMERICAN REMANUFACTURED | 789-22079, 89-22079 |
| AUTOSPECIALTY | JBR714, JBR714E |
| AUTOXTRA | 125258, AX31117 |
| AUTOZONE | 31117, 31117DG |
| BECK/ARNLEY | 080-2552, 083-2552 |
| BENDIX | 141797 |
| BOSCH | 50011300 |
| BRAKE HEADQUARTERS | BR06251 |
| BRAKEBEST | 50011300, 96340, 96340R, 96340RGS, BD125258 |
| BREMBO | 25849 |
| CALIFORNIA DRUM & ROTOR | 125258 |
| CENTRIC | 120.44081, 121.44081, 125.44081, 126.44081CSL, 126.44081CSR, 126.44081SL, 126.44081SR, 127.44081L, 127.44081R, 128.44081CL, 128.44081CR, 128.44081L, 128.44081R |
| Casting Numbers | 210775-C, 325828 |
| Centric Parts | 120.44081, 121.44081, 125.44081, 126.44081CSL, 126.44081CSR, 126.44081SL, 126.44081SR, 127.44081L, 127.44081R, 128.44081CL, 128.44081CR, 128.44081L, 128.44081R |
| DELPHI | RB385 |
| DURA CORP | BR31117 |
| DuraGo | BR31117 |
| EIS BRAKES | D17676 |
| EUROROTOR | TO685 |
| GIRLING | GR6101 |
| GREN | 23302 |
| MIDAS | BR1825 |
| MIGHTY DISTRIBUTING SYSTEM | 31117 |
| NEWTEK AUTOMOTIVE | 31117 |
| Newtek Automotive USA | 31117 |
| PILENGA | V838 |
| PRONTO | BR31117 |
| QUALIS | 31117 |
| QUALITEE INTERNATIONAL | 64-79-950 |
| QUALITY BRAND | 31117, Q090 |
| ROCKHILL | 34011 |
| STANDARD ROTORS AND DRUMS | 31117 |
| THE UNIVERSAL GROUP | 128319 |
| TOYOTA | 4351224041, 4351224061 |
| TRUSTAR | 479950, R79950 |
| UAP | 31117 |
| Universal | 128319 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50917 |
| WAGNER | BD125258 |
| WAGNER BRAKE | BD125258 |
| WINHERE | YH2227 |
| WORLDPAC | 1427-719978 |
RAYBESTOS 96340 Fits Vehicles
- Lexus SC300 (1992-1998)
