(888) 312-8812 Login SignupRAYBESTOS 980356 Raybestos Specialty - Street Performance Brake Rotor
$12399
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Aug 17
RAYBESTOS 980356 Part Description
Manufacturer
Product Description

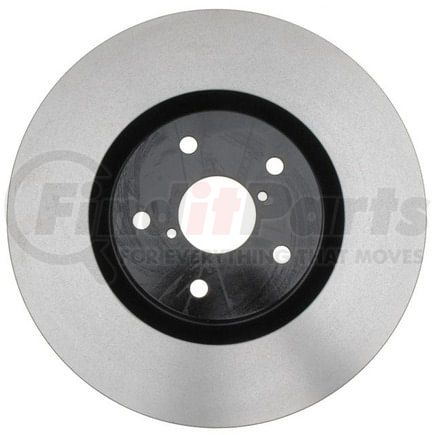

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2014-2005 Subaru Impreza Front, 2017-2013 Subaru WRX STI Front, 2014 Subaru WRX Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980356 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.284 IN |
| Center Hole Diameter | 58 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.843 IN |
| Outside Diameter | 326.2 MM |
| Overall Height | 2.075 IN |
| Overall Height | 52.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352509654 |
RAYBESTOS 980356 Cross References
| Brand | Part Number |
|---|---|
| ASH85900, 829352509654 | |
| ADVANCE AUTO PARTS | YH145753, YH145753C, YH145753P |
| ATE BRAKE PRODUCTS | 430203 |
| AUTOZONE | 44324, 44324DG |
| BENDIX | PRT5753 |
| BOSCH | 48011478 |
| BRAKEBEST | 48011478, 980356, 980356FZN, 980356R, 980356RGS |
| BREMBO | 09.7812.21 |
| Brembo | 09.7812.2X, 09.7812.2S |
| CENTRIC | 120.47022, 121.47022, 125.47022, 125.47022CRY, 126.47022CSL, 126.47022CSR, 126.47022SL, 126.47022SR, 127.47022CL, 127.47022CR, 127.47022L, 127.47022R, 128.47022CL, 128.47022CR, 128.47022L, 128.47022R, 227.47022L, 227.47022R, 320.47022, 320.47022C, 320.47022H |
| Centric Parts | 120.47022, 121.47022, 125.47022, 125.47022CRY, 126.47022CSL, 126.47022CSR, 126.47022SL, 126.47022SR, 127.47022CL, 127.47022CR, 127.47022L, 127.47022R, 128.47022CL, 128.47022CR, 128.47022L, 128.47022R, 227.47022L, 227.47022R, 320.47022C, 320.47022, 320.47022H |
| DURA CORP | BR31405, BR900490 |
| DuraGo | 900490, BR900490 |
| MAGMA PRODUCTS | PSR523017 |
| NEWTEK AUTOMOTIVE | 31405 |
| Newtek Automotive USA | 31405 |
| PROMAX | 14-31405 |
| PRONTO | BR900490 |
| Qualis | 44324 |
| SUBARU | 26300FE070 |
| TRW | 4949 |
| UAP | 31405 |
| Ultra Brake | SU-705 |
| WAGNER | BD126492, BD126492E |
| WAGNER BRAKE | BD126492 |
| WINHERE | 6620739 |
| WORLDPAC | 1407-77165, 1427-530185 |
| Wagner Brake | BD126492E |
RAYBESTOS 980356 Fits Vehicles
- Subaru WRX (2014)
- Subaru WRX STI (2013-2017)
- Subaru Impreza (2005-2014)
