ATE BRAKE PRODUCTS 430203 Part Description
Manufacturer
Product Description

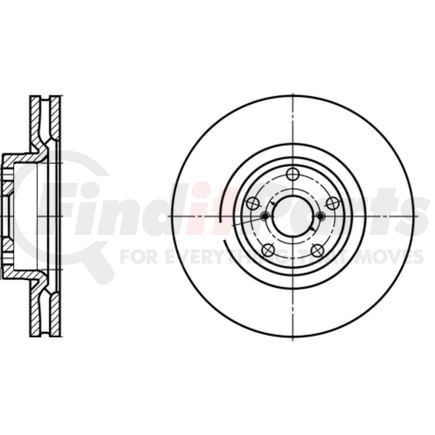

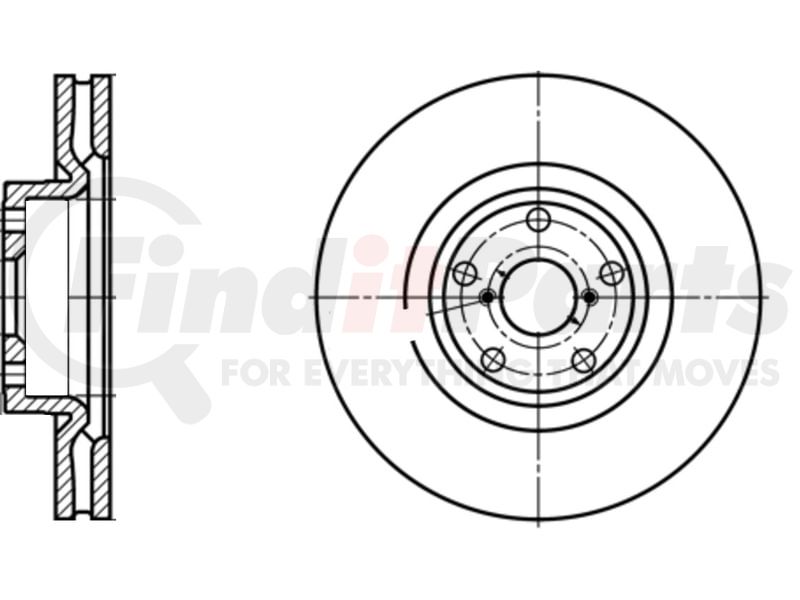

ATE Original Front Disc Brake Rotor 430203 for Subaru
Features & Benefits
- Application specific design is engineered to tighter tolerances
- Protective coating ensures long lasting corrosion resistance
- High carbon brake disc optimize durability and prevents brake judder and noise
- Use of state of the art original replacement part materials in the production of the rotors
ATE BRAKE PRODUCTS 430203 Specifications
Product Attributes
| Outside Diameter | 326.00 MM |
| Inside Diameter | 148.00 MM |
| Nominal Thickness | 30.00 MM |
| Discard Thickness | 28.00 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Overall Height | 52.70 MM |
| Material | High-carbon |
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Stud/Lug Hole Circle Diameter | 114.30 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.80 MM |
| Center Hole Diameter | 58.00 MM |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Country of Origin (Primary) | DE |
| EU | |
| UPC | 04006633328067 |
ATE BRAKE PRODUCTS 430203 Cross References
| Brand | Part Number |
|---|---|
| Brembo | 09.7812.21, 09.7812.2X |
| Delphi | BG9055 |
| Ferodo America | DDF1749, DDF1749-1 |
| Hella | 54943PRO, 8DD 355 117-861 |
| Qualis | 44324 |
| Raybestos Brakes | 980356 |
| Subaru | 26300FE070 |
| TRW | DF4949S |
| Wagner Brake | BD126492 |
ATE BRAKE PRODUCTS 430203 Fits Vehicles
- Subaru WRX (2022)
- Subaru WRX STI (2015-2017)
- Subaru Impreza (2004-2014)
