RAYBESTOS 980198 Part Description
Manufacturer
Product Description

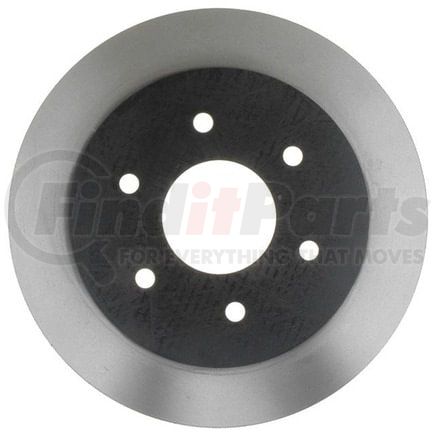

Raybestos Specialty - Truck Brake Rotor
Application Summary
2015-2004 Nissan TITAN Rear, 2019-2017,2015-2005 Nissan Armada Rear, 2010-2004 INFINITI QX56 Rear, 2004 Nissan Pathfinder Armada Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980198 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.23 IN |
| Center Hole Diameter | 82.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.472 IN |
| Discard Thickness | 12 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.54 IN |
| Mounting Bolt Hole Diameter | 13.7 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.55 IN |
| Nominal Thickness | 13.95 MM |
| Outside Diameter | 12.58 IN |
| Outside Diameter | 319.55 MM |
| Overall Height | 2.28 IN |
| Overall Height | 57.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730872438 |
RAYBESTOS 980198 Cross References
| Brand | Part Number |
|---|---|
| 77416743, 747730872438 | |
| ADVANCE AUTO PARTS | N1000139612APO, YH145475, YH145475C, YH145475P |
| AUTOPARTSOURCE | 476115 |
| AUTOXTRA | 80980198, AX31329 |
| AUTOZONE | 31329, 31329DG, DL31329 |
| BENDIX | 145475 |
| BRAKEBEST | 40011057, 980198, 980198FZN, 980198R, 980198RGS |
| BREMBO | 08.B449.10, 25845 |
| Brembo | 08.B449.11 |
| CENTRIC | 120.42081, 121.42081, 125.42081, 125.42081CRY, 126.42081CSL, 126.42081CSR, 126.42081SL, 126.42081SR, 127.42081CL, 127.42081CR, 127.42081L, 127.42081R, 128.42081CL, 128.42081CR, 128.42081L, 128.42081R, 227.42081L, 227.42081R, 320.42081, 321.42081 |
| Casting Numbers | 211598-C, 326005 |
| Centric Parts | 120.42081, 121.42081, 125.42081, 125.42081CRY, 126.42081CSL, 126.42081CSR, 126.42081SL, 126.42081SR, 127.42081CL, 127.42081CR, 127.42081L, 127.42081R, 128.42081CL, 128.42081CR, 128.42081L, 128.42081R, 227.42081L, 227.42081R, 320.42081, 321.42081 |
| DATSUN/NISSAN | 432067S000 |
| DURA CORP | BR31329, BR3132902 |
| DuraGo | BR31329, BR3132902, BR31329-02 |
| MAGMA PRODUCTS | PSR425095 |
| MIGHTY DISTRIBUTING SYSTEM | 31329 |
| NEOTEK | 106177GF |
| NEWTEK AUTOMOTIVE | 31329 |
| Newtek Automotive USA | 31329 |
| Nissan | 432067S000 |
| Omnicraft | QBRR646 |
| POWERSTOP | JBR994EVC |
| PROMAX | 14-31329 |
| PRONTO | BR31329 |
| PowerStop | PSR661608 |
| QUALIS | 31329 |
| TopNotch | TN980198GEO |
| UAP | 31329 |
| Ultra Brake | NI-492 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51535 |
| WABCO | PS31329 |
| WABCO - Archived | PS31329 |
| WAGNER | BD126387, BD126387E |
| WAGNER BRAKE | BD126387, BD126387E |
| WINHERE | 661608 |
| WORLDPAC | 1407-77909, 1427-731892 |
| Wagner Brake | BD180827E |
RAYBESTOS 980198 Fits Vehicles
- Nissan Pathfinder Armada (2004)
- Nissan Armada (2005-2015, 2017-2019)
- INFINITI QX56 (2004-2010)
- Nissan TITAN (2004-2015)
