(888) 312-8812 Login SignupRAYBESTOS 980474 Raybestos Specialty - Street Performance Brake Rotor
$102.29
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980474 Part Description
Manufacturer
Product Description

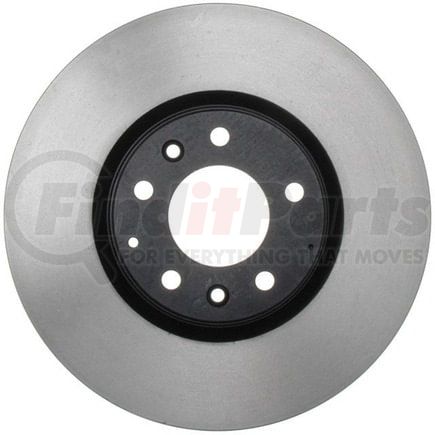

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2007-2006 Mazda 6 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980474 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.835 IN |
| Center Hole Diameter | 72 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 12.583 IN |
| Outside Diameter | 319.6 MM |
| Overall Height | 1.811 IN |
| Overall Height | 46 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352541197 |
RAYBESTOS 980474 Cross References
| Brand | Part Number |
|---|---|
| AST24678, 829352541197 | |
| ADVANCE AUTO PARTS | YH200375 |
| AUTOZONE | 31437, 31437DG |
| BENDIX | PRT5880 |
| BOSCH | 34011470 |
| BRAKEBEST | 34011470, 980474, 980474FZN, 980474R, 980474RGS |
| CENTRIC | 120.45073, 121.45073, 125.45073CRY, 125.45073, 126.45073CSL, 126.45073CSR, 126.45073SL, 126.45073SR, 127.45073CL, 127.45073CR, 127.45073L, 127.45073R, 128.45073CL, 128.45073CR, 128.45073L, 128.45073R |
| Centric Parts | 120.45073, 121.45073, 125.45073, 125.45073CRY, 126.45073CSL, 126.45073CSR, 126.45073SL, 126.45073SR, 127.45073CL, 127.45073CR, 127.45073L, 127.45073R, 128.45073CL, 128.45073CR, 128.45073L, 128.45073R, 320.45073F |
| DURA CORP | BR31437, BR900454 |
| DuraGo | 900454, BR900454 |
| Dynamic Friction Company | 604-80045 |
| MAZDA | G31Y3325XA, GP9Y3325X |
| NEWTEK AUTOMOTIVE | 31437 |
| Newtek Automotive USA | 31437 |
| PROMAX | 14-31437 |
| PRONTO | BR900454 |
| Qualis | 44653 |
| UAP | 31437 |
| WAGNER | BD126500 |
| WAGNER BRAKE | BD126500 |
| WINHERE | 6620780 |
RAYBESTOS 980474 Fits Vehicles
- Mazda 6 (2006-2007)
RAYBESTOS 980474 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980474 Questions & Answers
No questions yet
Be the first to ask a question about this product!
