(888) 312-8812 Login SignupRAYBESTOS 780624 Raybestos Specialty - Truck Brake Rotor
$16199
Limited availability at this price!
In Stock
Get as soon as Wednesday, Oct 7
RAYBESTOS 780624 Part Description
Manufacturer
Product Description

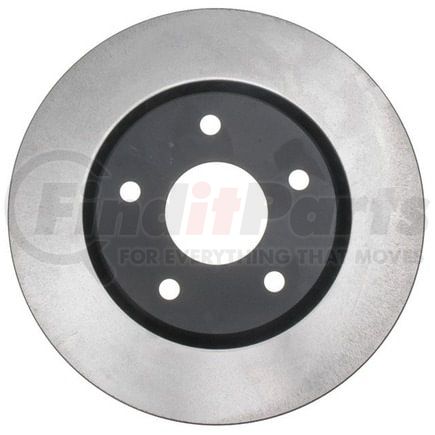

Raybestos Specialty - Truck Brake Rotor
Application Summary
2009-2008 Dodge Grand Caravan Front, 2009-2008 Chrysler Town & Country Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring:Optimal coolingReduced fadeLess noiseIncreased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 780624 Specifications
Product Attributes
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.04 IN |
| Discard Thickness | 26.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.547 IN |
| Mounting Bolt Hole Diameter | 13.9 MM |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Salability Restrictions | No |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352629581 |
RAYBESTOS 780624 Cross References
| Brand | Part Number |
|---|---|
| BRSK7318, 829352629581 | |
| ADVANCE AUTO PARTS | YH245037C, YH245037P |
| AUTOPARTSOURCE | 591275 |
| AUTOXTRA | AX900524 |
| AUTOZONE | 43166, 43166DG, 43166DL |
| Advance Auto Parts | BD126542 |
| Autoxtra | AX900524P |
| BENDIX | PRT5843 |
| BRAKEBEST | 780624, 780624FZN, 780624R, 780624RGS |
| Brembo | 09.N124.11 |
| CENTRIC | 120.67069, 120.67069CRY, 121.67069, 126.67069CSL, 126.67069CSR, 126.67069SL, 126.67069SR, 127.67069CL, 127.67069CR, 127.67069L, 127.67069R, 128.67069CL, 128.67069CR, 128.67069L, 128.67069R, 227.67069L, 227.67069R, 320.67069 |
| CHRYSLER | 4721933AB |
| Casting Numbers | 326395 |
| Centric Parts | 120.67069, 120.67069CRY, 121.67069, 126.67069CSL, 126.67069CSR, 126.67069SL, 126.67069SR, 127.67069CL, 127.67069CR, 127.67069L, 127.67069R, 128.67069CL, 128.67069CR, 128.67069L, 128.67069R, 227.67069L, 227.67069R, 320.67069 |
| DURA CORP | BR53051, BR900524 |
| DuraGo | BR900524 |
| MAGMA PRODUCTS | PSR145187 |
| NEOTEK | 107086GF |
| NEWTEK AUTOMOTIVE | 53051 |
| Newtek Automotive USA | 53051 |
| POWERSTOP | AR8797EVC |
| PROMAX | 14-53051, 20-53051 |
| PRONTO | BR900524 |
| Parts Master | 900524 |
| TopNotch | TN780624GEO |
| UAP | 53051 |
| WAGNER | BD126542, BD180464E |
| WAGNER BRAKE | BD126542 |
| WINHERE | 6620918 |
| Winhere | 6621213 |
RAYBESTOS 780624 Fits Vehicles
- Chrysler Town & Country (2008-2009)
- Dodge Grand Caravan (2008-2009)
