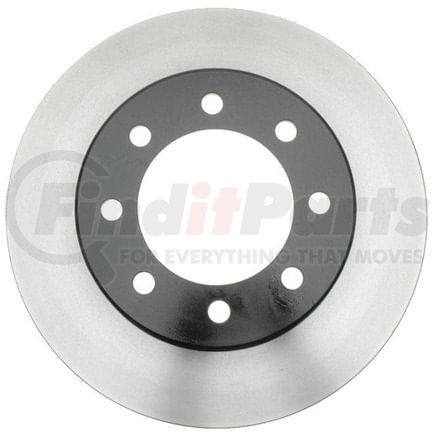

RAYBESTOS 780736 Raybestos Specialty - Truck Brake Rotor

★★★★★ (0)

$192.99

Limited availability at this price!

1 Day Lead Time

Get as soon as Monday, Nov 30
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
This item will ship about 1 day after the date of purchase.

RAYBESTOS 780736 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Truck Brake Rotor

Application Summary

2023-2011 Ram 2500 Front, 2023-2011 Ram 3500 Front, 2012 Ram 1500 Front, 2010-2009 Dodge Ram 2500 Front, 2010-2009 Dodge Ram 3500 Front, 2010-2009 Dodge Ram 4000 Front, 2015-2011 Ram 4000 Front

Features & Benefits

  • OE Fit, Form, and Function
  • Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
  • Cooling Vanes
  • We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
  • We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring:Optimal coolingReduced fadeLess noiseIncreased pad life
  • Coating
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • SAE Standard for Tensile Strength
  • Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
  • Turned Finish
  • A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box

RAYBESTOS 780736 Specifications

Product Attributes

ABS Tone Ring IncludedNo
Center Hole Diameter4.84 IN
Center Hole Diameter122.95 MM
Conventional Or Drum-In-Hat Type RotorConventional
Directional or Non-Directional Brake SurfaceNon-Directional
Discard Thickness1.472 IN
Discard Thickness37.4 MM
Harmonize Code8708.30.5030
Inside Diameter8.813 IN
Inside Diameter223.85 MM
MaterialCast Iron
Mounting Bolt Hole Circle Diameter6.496 IN
Mounting Bolt Hole Circle Diameter165 MM
Mounting Bolt Hole Diameter0.655 IN
Mounting Bolt Hole Diameter16.65 MM
Mounting Bolt Hole Quantity8
Nominal Thickness1.541 IN
Nominal Thickness39.15 MM
Outside Diameter14.175 IN
Outside Diameter360.05 MM
Overall Height4.02 IN
Overall Height102.1 MM
Salability RestrictionsNo
Solid Or Vented Type RotorVented
Stud/Lug Hole Quantity8
Surface TypeSmooth
UNSPSC Code25171715

Additional Information

Country of Origin (Primary)CN
Canadian Harmonizing Tariff Code8708309990
Harmonized Tariff Code (HTS)8708305030
UPC00829352704226

RAYBESTOS 780736 Cross References

BrandPart Number
DYN-6924, 829352704226
ADVANCE AUTO PARTS274914, G09602SD, YH274914, YH274914C, YH274914P
AUTOPARTSOURCE491345
AUTOXTRAAX900658
AUTOZONE43168, 43168DG
AutoZone43168SD
AutoxtraAX900658P
BENDIXPRT5909, SDR5909
BOSCH16011495
BRAKEBEST16011495, 780736, 780736FZN, 780736R, 780736RGS
Brembo09.D272.10
CENTRIC120.67072, 120.67072CRY, 121.67072, 126.67072CSL, 126.67072CSR, 126.67072SL, 126.67072SR, 127.67072CL, 127.67072CR, 127.67072L, 127.67072R, 128.67072CL, 128.67072CR, 128.67072L, 128.67072R, 320.67072, 320.67072F
CHRYSLER52122182AA, 52122182AB, 68414882AA, 68414882AB
Centric Parts120.67072, 120.67072CRY, 121.67072, 126.67072CSL, 126.67072CSR, 126.67072SL, 126.67072SR, 127.67072CL, 127.67072CR, 127.67072L, 127.67072R, 128.67072CL, 128.67072CR, 128.67072L, 128.67072R, 320.67072, 320.67072F
DURA CORPBR53057, BR900658, BR90065802
DuraGo900658, BR900658, BR900658-02
Dynamic Friction Company600-40110
MAGMA PRODUCTSPSR145191
MONROE BRAKESBD180311
NEOTEK1070104GF
NEWTEK AUTOMOTIVE53057
Newtek Automotive USA53057
POWERSTOPAR8373EVC
PROMAX14-53057
PRONTOBR900658
Parts Master900658
QUALIS43163
Qualis43168
Ram68414882AB
TopNotchTN780736GEO
UAP2053057, 53057
Ultra Brake53165
WABCOPS180311
WABCO - ArchivedPS180311
WAGNERBD180311E
WAGNER BRAKEBD180311, BD180311E
WINHERE6621130
WORLDPAC1407-274914, 1427-731953

RAYBESTOS 780736 Fits Vehicles

  • Dodge Ram 2500 (2009-2010)
  • Dodge Ram 3500 (2009-2010)
  • Dodge Ram 4000 (2009-2010)
  • Ram 1500 (2012)
  • Ram 2500 (2010-2024)
  • Ram 3500 (2011-2024)
  • Ram 4000 (2011-2015)
