(888) 312-8812 Login SignupRAYBESTOS 580676 Raybestos Specialty - Street Performance Brake Rotor
MSRP: $182.58
$13899
Save $43.59
Limited availability at this price!
In Stock
Get it by Friday, Jun 12
RAYBESTOS 580676 Part Description
Manufacturer
Product Description

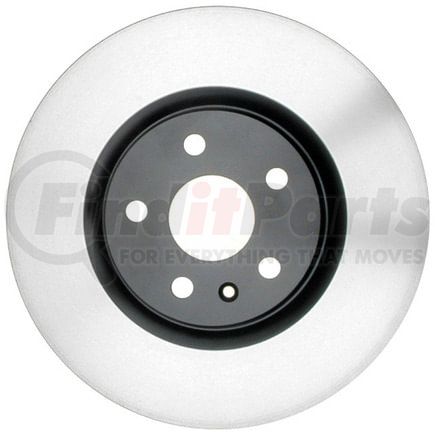

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2014-2008 Cadillac CTS Front, 2019-2013 Cadillac XTS Front, 2023-2020 Chevrolet Corvette Front, 2017-2014 Buick Regal Front, 2017-2011 Chevrolet Caprice Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 580676 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.724 IN |
| Center Hole Diameter | 120 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.063 IN |
| Discard Thickness | 27 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.425 IN |
| Inside Diameter | 214 MM |
| Mounting Bolt Hole Circle Diameter | 2.654 IN |
| Mounting Bolt Hole Circle Diameter | 67.4 MM |
| Mounting Bolt Hole Diameter | 2.654 IN |
| Mounting Bolt Hole Diameter | 67.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 13.583 IN |
| Outside Diameter | 345 MM |
| Overall Height | 2.008 IN |
| Overall Height | 51 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352692202 |
RAYBESTOS 580676 Cross References
| Brand | Part Number |
|---|---|
| DYN-6314, 829352692202 | |
| ADVANCE AUTO PARTS | G09169SD, YH200473, YH200473C, YH200473P |
| AUTOXTRA | AX900508, AX901024 |
| AUTOZONE | 41240, 41240DG, 41240DL, 72030, 72030DL |
| Autoxtra | AX900508P |
| BOSCH | 25011428 |
| BRAKEBEST | 25011428, 580676, 580676FZN, 580676P, 580676PER, 580676R, 580676RGS |
| BrakeBest | 521494RGS |
| Brembo | 09.N303.11 |
| CENTRIC | 120.62108, 120.62108CRY, 120.62140, 120.62154, 121.62108, 121.62140, 121.62188, 125.62188, 126.62108SL, 126.62108SR, 126.62140SL, 126.62140SR, 127.62108CL, 127.62108CR, 127.62108L, 127.62108R, 127.62140L, 127.62140R, 128.62108L, 128.62108R, 320.62140, 320.62188H, 120.6214 |
| Casting Numbers | 326426 |
| Centric Parts | 120.62108, 120.62108CRY, 120.62140, 120.62154, 121.62108, 121.62140, 126.62108SL, 126.62108SR, 126.62140SL, 126.62140SR, 127.62108CL, 127.62108CR, 127.62108L, 127.62108R, 127.62140L, 127.62140R, 128.62108L, 128.62108R, 320.62140, 121.62188, 125.62188, 320.62188H |
| DURA CORP | BR55156, BR900508 |
| DuraGo | BR900508 |
| Dynamic Friction Company | 604-46027 |
| GM | 13586138, 15267103, 23118526, 25946317, 84714265, 92260109 |
| General Motors | 13586138, 15267103, 23118526, 25946317, 84714265, 92260109 |
| MAGMA PRODUCTS | PSR223117 |
| MONROE BRAKES | BD180017 |
| N/A | 13581105 |
| NEOTEK | 1072042GF |
| NEWTEK AUTOMOTIVE | 55156 |
| Newtek Automotive USA | 55156 |
| POWERSTOP | AR82125EVC |
| PROMAX | 14-55156 |
| PRONTO | BR900508 |
| Qualis | 41240, 41283 |
| TopNotch | TN580676GEO |
| UAP | 55156 |
| WABCO | PS180017 |
| WABCO - Archived | PS180017 |
| WAGNER | BD180017E |
| WAGNER BRAKE | BD180017 |
| WINHERE | 6621041 |
| WORLDPAC | 1407-479071, 1407-76029, 1427-719753, 1427-733795 |
| Wagner Brake | BD180017E, BD180596 |
| Winhere | 6621494, 6623003 |
RAYBESTOS 580676 Fits Vehicles
- Chevrolet Corvette (2020-2025)
- Buick Regal (2014-2017)
- Cadillac XTS (2013-2019)
- Chevrolet Caprice (2011-2017)
- Cadillac CTS (2008-2014)
