(888) 312-8812 Login SignupRAYBESTOS 56495 Raybestos Specialty - Street Performance Brake Rotor
$99.95
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 56495 Part Description
Manufacturer
Product Description

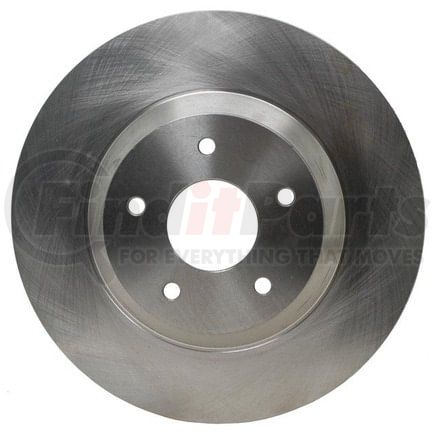

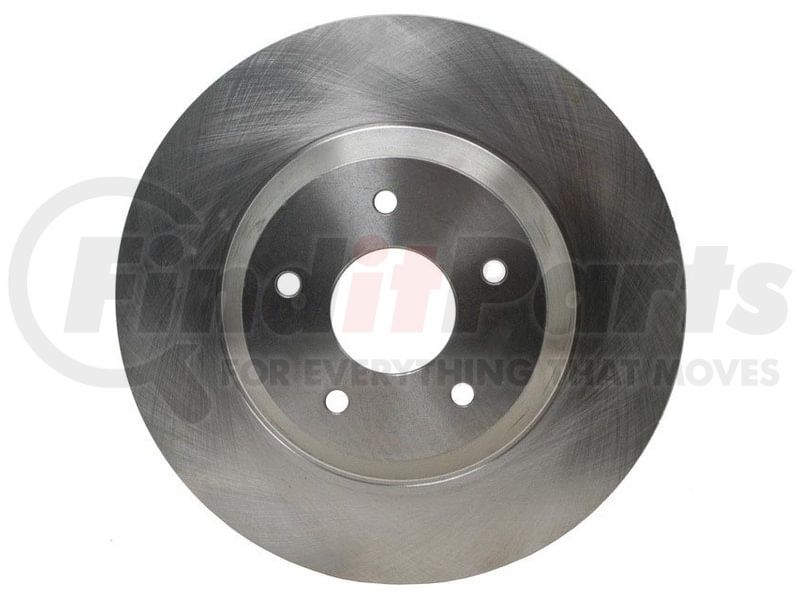

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1996-1988 Chevrolet Corvette Front Right
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 56495 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.783 IN |
| Center Hole Diameter | 70.7 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.039 IN |
| Discard Thickness | 26.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.75 IN |
| Mounting Bolt Hole Circle Diameter | 120.65 MM |
| Mounting Bolt Hole Diameter | 0.516 IN |
| Mounting Bolt Hole Diameter | 13.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 13 IN |
| Outside Diameter | 330.2 MM |
| Overall Height | 2.205 IN |
| Overall Height | 56 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999832139 |
RAYBESTOS 56495 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-679, 177-751, 177-781 |
| ADVANCE AUTO PARTS | 141898, YH141898 |
| AMERICAN REMANUFACTURED | 89-36047 |
| AUTOSPECIALTY | AR8247, AR8247E |
| AUTOXTRA | 61854, AX55010 |
| AUTOZONE | 55010 |
| BENDIX | 141898 |
| BOSCH | 25010679 |
| BRAKE HEADQUARTERS | BR55556 |
| BRAKEBEST | 25010679, 56495, 56495R, 56495RGS, BD61854 |
| BREMBO | 27322 |
| CALIFORNIA DRUM & ROTOR | 61854 |
| CENTRIC | 120.62047, 120.62047CRY, 121.62047, 125.62047, 126.62047CSR, 126.62047SR, 127.62047CR, 127.62047R, 128.62047CR, 128.62047R, 227.62047R |
| Casting Numbers | 210781-C, 325857 |
| Centric Parts | 120.62047, 120.62047CRY, 121.62047, 125.62047, 126.62047CSR, 126.62047SR, 127.62047CR, 127.62047R, 128.62047CR, 128.62047R, 227.62047R |
| DELPHI | RB538 |
| DURA CORP | BR55010 |
| DuraGo | BR55010 |
| Dynamic Friction Company | 604-47024D |
| EIS BRAKES | D17707 |
| EUCLID | E-11317 |
| EUROROTOR | 55200R |
| GM | 10052204, 10157920, 10257632 |
| GREN | 669802 |
| General Motors | 10052204, 10157920, 10257632 |
| MIDAS | BR1918 |
| MIGHTY DISTRIBUTING SYSTEM | 55010 |
| NEWTEK AUTOMOTIVE | 55010 |
| Newtek Automotive USA | 55010 |
| QUALIS | 55010 |
| QUALITEE INTERNATIONAL | 64-93-900 |
| QUALITY BRAND | 55010, Q4037 |
| STANDARD ROTORS AND DRUMS | 55010 |
| THE UNIVERSAL GROUP | 101101 |
| TRUSTAR | 493900, R93900 |
| UAP | 55010 |
| Universal | 101101 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51060 |
| WAGNER | BD61854 |
| WAGNER BRAKE | BD61854 |
| WINHERE | YH2414 |
| WORLDPAC | 1407-25810 |
RAYBESTOS 56495 Fits Vehicles
- Chevrolet Corvette (1988-1996)
