(888) 312-8812 Login SignupRAYBESTOS 96802 Raybestos Specialty - Street Performance Brake Rotor
$93.28
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96802 Part Description
Manufacturer
Product Description

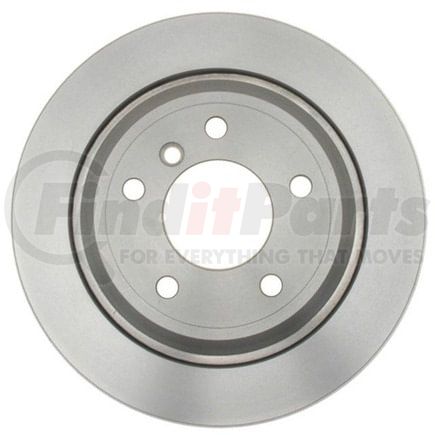

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2000-1996 BMW 528i Rear, 2003-2001 BMW 530i Rear, 2003-2001 BMW 525i Rear, 2003-1997 BMW 540i Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96802 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.724 IN |
| Discard Thickness | 18.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.575 IN |
| Mounting Bolt Hole Diameter | 14.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 11.732 IN |
| Outside Diameter | 298 MM |
| Overall Height | 2.402 IN |
| Overall Height | 61 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00753497986509 |
RAYBESTOS 96802 Cross References
| Brand | Part Number |
|---|---|
| 753497986509, 120.34046 | |
| ADVANCE AUTO PARTS | 145372, YH145372, YH145372C |
| ALTROM IMPORTS | 34211164840 |
| AMERICAN REMANUFACTURED | 89-62047 |
| ATE BRAKE PRODUCTS | SP20154, 420154 |
| AUTOXTRA | 125520, AX34162 |
| AUTOZONE | 34162DG |
| AutoZone | 34162 |
| BECK/ARNLEY | 083-2707 |
| BENDIX | 145372 |
| BMW | 34216767060, 34211163153, 34211164175, 34211164840, 3421164840 |
| BRAKEBEST | 15010065, 96802, 96802FZN, 96802R, 96802RGS, BD125520 |
| BREMBO | 09.6841.11, 25446 |
| Brembo | 09.6841.1X, 09.6841.75 |
| CALIFORNIA DRUM & ROTOR | 125520 |
| CENTRIC | 120.34046, 121.34046, 125.34046, 125.34046CRY, 126.34046CSL, 126.34046CSR, 126.34046SL, 126.34046SR, 127.34046CL, 127.34046CR, 127.34046L, 127.34046R, 128.34046CL, 128.34046CR, 128.34046L, 128.34046R, 320.34046, 320.34046H |
| CONTINENTAL-CONTITECH | CW20154 |
| Casting Numbers | 211238-C, 325910 |
| Centric Parts | 120.34046, 121.34046, 125.34046, 125.34046CRY, 126.34046CSL, 126.34046CSR, 126.34046SL, 126.34046SR, 127.34046CL, 127.34046CR, 127.34046L, 127.34046R, 128.34046CL, 128.34046CR, 128.34046L, 128.34046R, 320.34046, 320.34046H |
| DURA CORP | BR34162 |
| DuraGo | BR34162 |
| EUROROTOR | BM741 |
| MAGMA PRODUCTS | PSR123047 |
| MIGHTY DISTRIBUTING SYSTEM | 34162 |
| MONROE BRAKES | BD125520 |
| NAPA BRAKES | SDK6921 |
| NEOTEK | 106688GF |
| NEWTEK AUTOMOTIVE | 34131, 34162 |
| Newtek Automotive USA | 34131, 34162 |
| PAGID | 355104612 |
| PAGID Racing | 355104612 |
| PILENGA | V123 |
| POWERSTOP | EBR497EVC |
| PROMAX | 14-34131, 14-34162 |
| PRONTO | BR34162 |
| QUALIS | 34162 |
| QUINTON HAZELL | BDC4677 |
| TRW | 2783, DF2783S |
| UAP | 34162 |
| VAICO | V2080027 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51445 |
| WABCO | PS125520 |
| WABCO - Archived | PS125520 |
| WAGNER | BD126580, BD125520E |
| WAGNER BRAKE | BD125520 |
| WINHERE | 442497 |
| WORLDPAC | 1407-78323 |
| Wagner Brake | BD125520E |
RAYBESTOS 96802 Fits Vehicles
- BMW 540i (1997-2003)
- BMW 530i (2001-2003)
- BMW 528i (1996-2000)
- BMW 525i (2001-2003)
