(888) 312-8812 Login SignupRAYBESTOS 980499 Raybestos Specialty - Street Performance Brake Rotor
$13649
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jun 30
RAYBESTOS 980499 Part Description
Manufacturer
Product Description

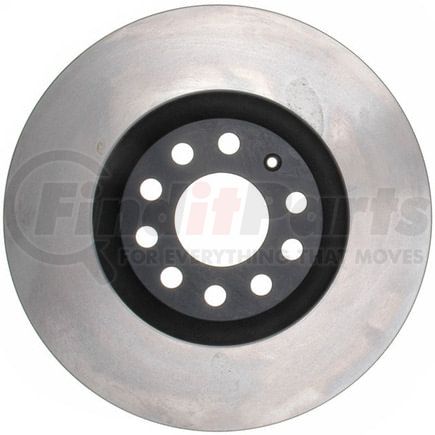

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2009-2005,2001-2000 Audi A4 Quattro Front, 2009-2005 Audi A4 Front, 2005-2001 Audi Allroad Quattro Front, 2000 Audi A6 Quattro Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980499 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.682 IN |
| Center Hole Diameter | 68.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 12.598 IN |
| Outside Diameter | 320 MM |
| Overall Height | 1.815 IN |
| Overall Height | 46.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352604274 |
RAYBESTOS 980499 Cross References
| Brand | Part Number |
|---|---|
| 829352604274, 120.33096 | |
| ADVANCE AUTO PARTS | YH200968, YH200968C, YH200968P |
| ATE BRAKE PRODUCTS | SP30113, 430113 |
| AUDI | 8E0615301AD |
| AUTOXTRA | AX900686 |
| AUTOZONE | 34204, 34204DG |
| BRAKEBEST | 980499, 980499FZN, 980499R, 980499RGS |
| Brembo | 09.A598.11 |
| CENTRIC | 121.33096, 125.33096, 126.33096CSL, 126.33096CSR, 126.33096SL, 126.33096SR, 127.33096CL, 127.33096CR, 127.33096L, 127.33096R, 128.33096CL, 128.33096CR, 128.33096L, 128.33096R, 227.33096L, 227.33096R, 320.33096, 320.33096H |
| Centric Parts | 121.33096, 125.33096, 126.33096CSL, 126.33096CSR, 126.33096SL, 126.33096SR, 127.33096CL, 127.33096CR, 127.33096L, 127.33096R, 128.33096CL, 128.33096CR, 128.33096L, 128.33096R, 227.33096L, 227.33096R, 320.33096, 320.33096H, 120.33096 |
| DURA CORP | BR34319, BR900686, BR90068602 |
| DuraGo | 900686, BR34204, BR900686, BR900686-01 |
| Dynamic Friction Company | 604-73036 |
| NEOTEK | 106064GF |
| NEWTEK AUTOMOTIVE | 34319 |
| Newtek Automotive USA | 34319 |
| PAGID | 355121982 |
| PAGID Racing | 355121982 |
| POWERSTOP | EBR662EVC |
| PROMAX | 14-34319 |
| PRONTO | BR900686 |
| Qualis | 34204, 34319, 34330, 45701 |
| UAP | 34319 |
| Ultra Brake | AU-278 |
| VAICO | V1080074 |
| WINHERE | 6620248 |
| WORLDPAC | 1407-75278, 1427-530113 |
RAYBESTOS 980499 Fits Vehicles
- Seat Exeo (2011)
- Audi S4 (2000-2002)
- Audi A6 (1998-2004)
- Audi Allroad Quattro (2001-2005)
- Audi A6 Quattro (2000-2004)
- Audi A4 (2000-2009)
- Audi A4 Quattro (2000-2001, 2005-2009)
