RAYBESTOS 96362 Part Description
Manufacturer
Product Description

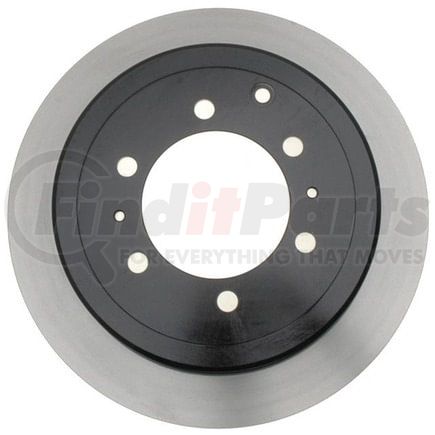

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1997-1993 Toyota Land Cruiser Rear, 1997-1996 Lexus LX450 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96362 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.173 IN |
| Center Hole Diameter | 106 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.63 IN |
| Discard Thickness | 16 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.571 IN |
| Mounting Bolt Hole Diameter | 14.5 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.71 IN |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 13.19 IN |
| Outside Diameter | 335.05 MM |
| Overall Height | 4.039 IN |
| Overall Height | 102.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999757302 |
RAYBESTOS 96362 Cross References
| Brand | Part Number |
|---|---|
| 25147114, 30999757302 | |
| ADVANCE AUTO PARTS | 141878, YH141878, YH141878C |
| AMERICAN REMANUFACTURED | 789-22086, 89-22086 |
| AUTOPART INTERNATIONAL | 78450 |
| AUTOSPECIALTY | JBR743, JBR743E |
| AUTOZONE | 31154, 31154DG |
| BECK/ARNLEY | 083-2577 |
| BENDIX | 141878 |
| BRAKE HEADQUARTERS | BR06290 |
| BRAKEBEST | 50011255, 96362, 96362R, 96362RGS, BD125424 |
| BREMBO | 25590 |
| CALIFORNIA DRUM & ROTOR | 125424 |
| CENTRIC | 120.44094, 120.44094CRY, 121.44094, 126.44094CSL, 126.44094CSR, 126.44094SL, 126.44094SR, 127.44094CL, 127.44094CR, 127.44094L, 127.44094R, 128.44094CL, 128.44094CR, 128.44094L, 128.44094R, 320.44094 |
| CONTINENTAL-CONTITECH | CW18708 |
| Casting Numbers | 325394 |
| Centric Parts | 120.44094, 120.44094CRY, 121.44094, 126.44094CSL, 126.44094CSR, 126.44094SL, 126.44094SR, 127.44094CL, 127.44094CR, 127.44094L, 127.44094R, 128.44094CL, 128.44094CR, 128.44094L, 128.44094R, 320.44094 |
| DELPHI | RB670 |
| DURA CORP | BR31154 |
| DuraGo | BR31154 |
| EUROROTOR | TO679 |
| GREN | 23702 |
| GUARDIAN | 52-125424 |
| MIGHTY DISTRIBUTING SYSTEM | 31154 |
| NAPA BRAKES | TSR786 |
| NEOTEK | 106332GF |
| NEWTEK AUTOMOTIVE | 31154 |
| Newtek Automotive USA | 31154 |
| PEP BOYS | 31154G |
| PROMAX | 14-31154 |
| PRONTO | BR31154 |
| QUALIS | 31154 |
| QUALITEE INTERNATIONAL | 64-79-690 |
| QUALITY BRAND | 31154 |
| QUINTON HAZELL | BDC4943 |
| STANDARD ROTORS AND DRUMS | 31154 |
| THE UNIVERSAL GROUP | 107790 |
| TOYOTA | 4243160170 |
| TRUSTAR | 479690, R79690 |
| TRW | DF3184S |
| UAP | 31154 |
| Universal | 107790 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50950 |
| WAGNER | BD125424 |
| WAGNER BRAKE | BD125424 |
| WINHERE | 442245, YH2245 |
| WORLDPAC | 1427-719963 |
RAYBESTOS 96362 Fits Vehicles
- Toyota Land Cruiser (1993-1997)
- Lexus LX450 (1996-1997)
