(888) 312-8812 Login SignupRAYBESTOS 980484 Raybestos Specialty - Street Performance Brake Rotor
$14049
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 16
RAYBESTOS 980484 Part Description
Manufacturer
Product Description

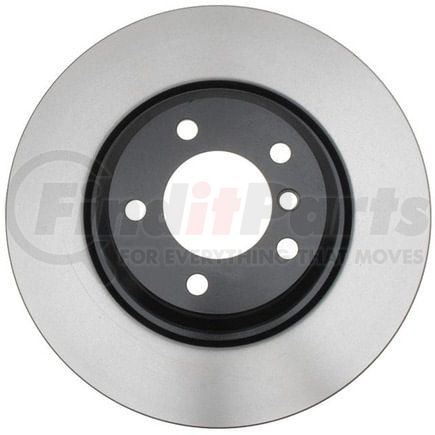

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2006 BMW 330i Front, 2006 BMW 330xi Front, 2012-2010 BMW X1 Front, 2010-2006 BMW 130i Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980484 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.11 IN |
| Center Hole Diameter | 79 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.882 IN |
| Discard Thickness | 22.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.209 IN |
| Inside Diameter | 208.5 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.58 IN |
| Mounting Bolt Hole Diameter | 14.75 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 12.984 IN |
| Outside Diameter | 329.8 MM |
| Overall Height | 2.878 IN |
| Overall Height | 73.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352589809 |
RAYBESTOS 980484 Cross References
| Brand | Part Number |
|---|---|
| 829352589809, 120.34079 | |
| ADVANCE AUTO PARTS | YH200935, YH200935C, YH200935P |
| ATE BRAKE PRODUCTS | 424200, SP00098 |
| AUTOZONE | 73002, 73002DG |
| BENDIX | PRT6079 |
| BMW | 34116764645 |
| BOSCH | 15010128 |
| BRAKEBEST | 15010128, 980484, 980484R, 980484RGS |
| BREMBO | 09.A259.11 |
| Brembo | 09.A259.1X |
| CENTRIC | 120.34079, 121.34079, 125.34079, 125.34079CRY, 126.34079CSL, 126.34079CSR, 126.34079SL, 126.34079SR, 127.34079L, 127.34079R, 128.34079CL, 128.34079CR, 128.34079L, 128.34079R, 226.34079SRT, 320.34079H |
| Centric Parts | 121.34079, 125.34079, 125.34079CRY, 126.34079CSL, 126.34079CSR, 126.34079SL, 126.34079SR, 127.34079L, 127.34079R, 128.34079CL, 128.34079CR, 128.34079L, 128.34079R, 226.34079SRT, 320.34079H, 120.34079 |
| DURA CORP | BR34313, BR900666 |
| DuraGo | 900666, BR900666 |
| MAGMA PRODUCTS | PSR123071 |
| NAPA BRAKES | SDK6461 |
| NEOTEK | 106693GF |
| NEWTEK AUTOMOTIVE | 34313 |
| Newtek Automotive USA | 34313 |
| PAGID | 355122762 |
| PAGID Racing | 355122762 |
| PROMAX | 14-34313 |
| PRONTO | BR900666 |
| Qualis | 45504 |
| TRUSTAR | 412760 |
| TRW | 4460 |
| UAP | 34313 |
| VAICO | V2080054 |
| WAGNER | BD180116, BD180116E |
| WAGNER BRAKE | BD180116, BD180116E |
| WINHERE | 6620346 |
| WORLDPAC | 1407-80402 |
RAYBESTOS 980484 Fits Vehicles
- BMW X1 (2010-2014)
- BMW 130i (2006-2010)
- BMW 330xi (2006)
- BMW 330i (2006)
