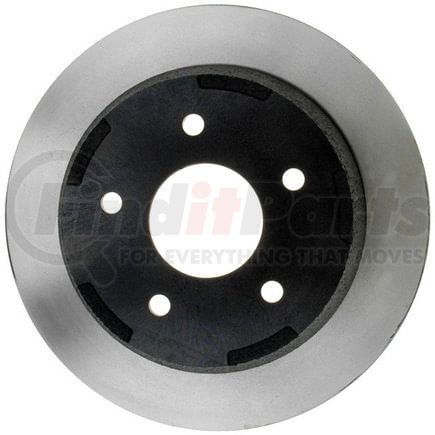

RAYBESTOS 56725 Raybestos Specialty - Truck Brake Rotor

★★★★★ (0)

$88.28

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 56725 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Truck Brake Rotor

Application Summary

2005-1998 Chevrolet Blazer Rear, 2002-1998 GMC Jimmy Rear

Features & Benefits

  • OE Fit, Form, and Function
  • Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
  • Cooling Vanes
  • We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
  • We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring:Optimal coolingReduced fadeLess noiseIncreased pad life
  • Coating
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • SAE Standard for Tensile Strength
  • Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
  • Turned Finish
  • A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box

RAYBESTOS 56725 Specifications

Product Attributes

ABS Tone Ring IncludedNo
Center Hole Diameter2.78 IN
Center Hole Diameter70.6 MM
Conventional Or Drum-In-Hat Type RotorDrum-In-Hat
Directional or Non-Directional Brake SurfaceNon-Directional
Discard Thickness0.728 IN
Discard Thickness18.5 MM
Harmonize Code8708.30.5030
MaterialCast Iron
Mounting Bolt Hole Circle Diameter4.75 IN
Mounting Bolt Hole Circle Diameter120.65 MM
Mounting Bolt Hole Diameter0.507 IN
Mounting Bolt Hole Diameter12.9 MM
Mounting Bolt Hole Quantity5
Nominal Thickness0.79 IN
Nominal Thickness20.05 MM
Outside Diameter11.61 IN
Outside Diameter294.9 MM
Overall Height2.87 IN
Overall Height72.9 MM
Salability RestrictionsNo
Solid Or Vented Type RotorVented
Stud/Lug Hole Quantity5
UNSPSC Code25171715

Additional Information

Country of Origin (Primary)CN
Canadian Harmonizing Tariff Code8708309990
Harmonized Tariff Code (HTS)8708305030
UPC00747730233147

RAYBESTOS 56725 Cross References

BrandPart Number
121.66039, F1EZ14290GB
ADVANCE AUTO PARTS145181, YH145181
AMERICAN REMANUFACTURED89-44039
AUTOSPECIALTYAR8639, AR8639E
AUTOZONE55049, 55049DG, DL55049
BENDIX145181
BOSCH25010580
BRAKEBEST25010580, 56725, 56725R, 56725RGS, 81-125577, BD125577
BREMBO09.9115.85, 27277
CENTRIC120.66039, 121.66039, 125.66039, 126.66039CSL, 126.66039CSR, 126.66039SL, 126.66039SR, 127.66039L, 127.66039R, 128.66039CL, 128.66039CR, 128.66039L, 128.66039R, 227.66039L, 227.66039R, 320.66039
CONTINENTAL-CONTITECHCW20716
Casting Numbers211148-C, 325467
Centric Parts120.66039, 121.66039, 125.66039, 126.66039CSL, 126.66039CSR, 126.66039SL, 126.66039SR, 127.66039L, 127.66039R, 128.66039CL, 128.66039CR, 128.66039L, 128.66039R, 227.66039L, 227.66039R, 320.66039
DELPHIRB548
DURA CORPBR55049
DuraGoBR55049
GM15733196
GUARDIAN52-125577
General Motors15733196
MIDASBR2112
MIGHTY DISTRIBUTING SYSTEM55049
NEWTEK AUTOMOTIVE55049
Newtek Automotive USA55049
POWERSTOPAR8639EVC
PROMAX14-55049
PRONTOBR55049
QUALIS55049
QUALITY BRAND55049, Q4002
STANDARD ROTORS AND DRUMS55049
THE UNIVERSAL GROUP101609
UAP55049
Ultra Brake55381
Universal101609
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX51259
WABCOPS125577
WABCO - ArchivedPS125577
WAGNERBD125577E, BD125577
WAGNER BRAKEBD125577
WINHERE662622, YH2622
WORLDPAC1407-25784
Wagner BrakeBD125577E

RAYBESTOS 56725 Fits Vehicles

  • Chevrolet Blazer (1998-2005)
  • GMC Jimmy (1997-2005)
  • GMC Sonoma (2004)
