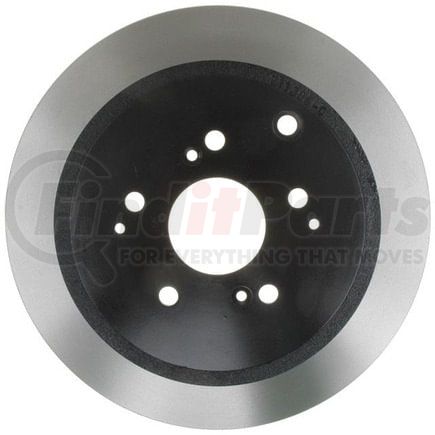

(888) 312-8812 Login SignupRAYBESTOS 980032 Raybestos Specialty - Truck Brake Rotor
$60.77
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980032 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2008-2003 Honda Pilot Rear, 2006-2001 Acura MDX Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980032 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.53 IN |
| Center Hole Diameter | 64.25 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.374 IN |
| Discard Thickness | 9.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.435 IN |
| Nominal Thickness | 11.05 MM |
| Outside Diameter | 12.33 IN |
| Outside Diameter | 313.2 MM |
| Overall Height | 2.195 IN |
| Overall Height | 55.75 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352023440 |
RAYBESTOS 980032 Cross References
| Brand | Part Number |
|---|---|
| 78053685, 829352023440 | |
| ADVANCE AUTO PARTS | 145393, N100087849BRC, YH145393, YH145393C, YH145393P |
| AMERICAN REMANUFACTURED | 89-08056 |
| AUTOPARTSOURCE | 571260 |
| AUTOSPECIALTY | JBR960, JBR960E |
| AUTOXTRA | 126051, 80980032, AX31318 |
| AUTOZONE | 31318, 31318DG, 31318DL |
| Autoxtra | AX31318P |
| BECK/ARNLEY | 083-2926 |
| BENDIX | 145393 |
| BRAKEBEST | 26010746, 980032, 980032FZN, 980032PER, 980032R, 980032RGS, BD126051 |
| BREMBO | 08.B437.10, 25828, 08.B437.11 |
| CENTRIC | 120.40053, 120.40053CRY, 121.40053, 126.40053CSL, 126.40053CSR, 126.40053SL, 126.40053SR, 127.40053L, 127.40053R, 128.40053CL, 128.40053CR, 128.40053L, 128.40053R, 227.40053L, 227.40053R, 320.40053, 321.40053 |
| Casting Numbers | 211386-C, 325614 |
| Centric Parts | 120.40053, 120.40053CRY, 121.40053, 126.40053CSL, 126.40053CSR, 126.40053SL, 126.40053SR, 127.40053L, 127.40053R, 128.40053CL, 128.40053CR, 128.40053L, 128.40053R, 227.40053L, 227.40053R, 320.40053, 321.40053 |
| DURA CORP | BR31318, BR3131802, BR90056 |
| DuraGo | BR31318, BR3131802, BR31318-02 |
| GREN | 47701 |
| HONDA | 42510S3VA01 |
| MAGMA PRODUCTS | PSR265089 |
| MIGHTY DISTRIBUTING SYSTEM | 31318 |
| MONROE BRAKES | BD126051 |
| NEOTEK | 106250GF |
| NEWTEK AUTOMOTIVE | 31318 |
| Newtek Automotive USA | 31318 |
| Omnicraft | QBRR63 |
| POWERSTOP | JBR960EVC |
| PROMAX | 14-31318, 20-31318 |
| PRONTO | BR31318 |
| QUALIS | 31318 |
| TopNotch | TN980032GEO |
| UAP | 31318 |
| Ultra Brake | HO-581 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51431 |
| WABCO | PS126051 |
| WABCO - Archived | PS126051 |
| WAGNER | BD126051, BD126051E |
| WAGNER BRAKE | BD126051, BD126051E |
| WINHERE | 661512 |
| WORLDPAC | 1407-78935, 1427-731776 |
RAYBESTOS 980032 Fits Vehicles
- Honda Pilot (2003-2008)
- Acura MDX (2001-2006)
