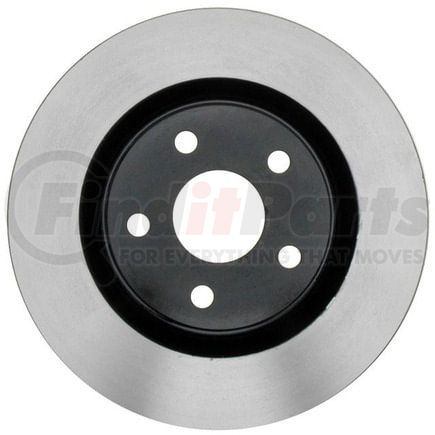

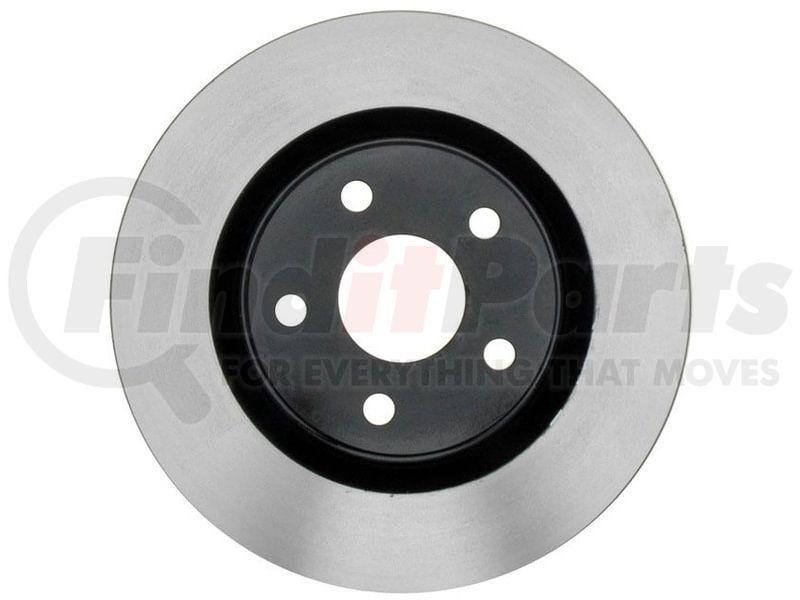

RAYBESTOS 580720 Raybestos Specialty - Street Performance Brake Rotor

Name: Raybestos 580720 Raybestos Specialty - Street Performance Brake Rotor
SKU: 580720
Price: 84.82 USD
Availability: OutOfStock

$84.82

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 580720 Part Description

Raybestos Specialty - Street Performance Brake Rotor

2009-2008 Pontiac G8 Front

Application Specific Enhanced Iron
Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
Cooling Vanes
The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
Application Specific Coating
Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
Turned Finish
Turned finish minimizes noise and improves responsiveness for smoother stops.
S-Groove Slot
Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.

ABS Tone Ring Included	No
Center Hole Diameter	2.653 IN
Center Hole Diameter	67.4 MM
Conventional Or Drum-In-Hat Type Rotor	Conventional
Discard Thickness	1.102 IN
Discard Thickness	28 MM
Harmonize Code	8708.30.5030
Inside Diameter	8.308 IN
Inside Diameter	211 MM
Mounting Bolt Hole Circle Diameter	4.724 IN
Mounting Bolt Hole Circle Diameter	120 MM
Mounting Bolt Hole Diameter	0.637 IN
Mounting Bolt Hole Diameter	16.2 MM
Mounting Bolt Hole Quantity	5
Nominal Thickness	1.181 IN
Nominal Thickness	30 MM
Outside Diameter	12.639 IN
Outside Diameter	321.05 MM
Overall Height	2.047 IN
Overall Height	52 MM
Salability Restrictions	No
Stud/Lug Hole Quantity	5
Surface Type	Smooth
UNSPSC Code	25171715

Country of Origin (Primary)	CN
Canadian Harmonizing Tariff Code	8708309990
Harmonized Tariff Code (HTS)	8708305030
UPC	00829352692271
