(888) 312-8812 Login SignupRAYBESTOS 96497R Raybestos R-Line Brake Rotor
$67.60
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96497R Part Description
Manufacturer
Product Description

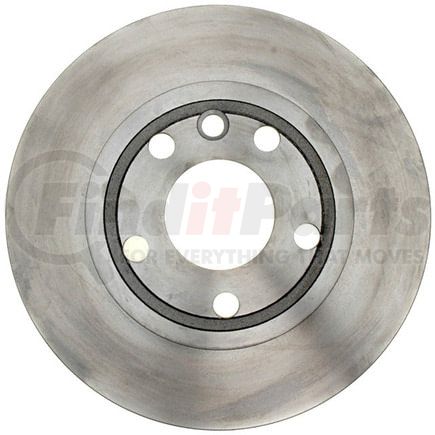

Raybestos R-Line Brake Rotor
Application Summary
1995-1994 Volkswagen EuroVan Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96497R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.684 IN |
| Center Hole Diameter | 68.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.591 IN |
| Discard Thickness | 15 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.651 IN |
| Mounting Bolt Hole Diameter | 16.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.71 IN |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 11.1 IN |
| Outside Diameter | 281.95 MM |
| Overall Height | 2.555 IN |
| Overall Height | 64.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352371480 |
RAYBESTOS 96497R Cross References
| Brand | Part Number |
|---|---|
| 90046093, 829352371480 | |
| ADVANCE AUTO PARTS | 145088, YH145088 |
| AMERICAN REMANUFACTURED | 89-94007, 89-96007 |
| AUTOSPECIALTY | EBR469 |
| AUTOZONE | 34169, 34169DG |
| BENDIX | 145088 |
| BRAKEBEST | 96497, 96497R, 96497RGS, BD125696 |
| BREMBO | 08.5768.10, 25176 |
| CENTRIC | 120.33045, 121.33045 |
| CONTINENTAL-CONTITECH | CW18111 |
| Casting Numbers | 211047-C, 326142 |
| Centric Parts | 120.33045, 121.33045 |
| DELPHI | RB302 |
| MIDAS | BR2083 |
| MIGHTY DISTRIBUTING SYSTEM | 34169 |
| NEWTEK AUTOMOTIVE | 34169 |
| Newtek Automotive USA | 34169 |
| QUALIS | 34169 |
| QUINTON HAZELL | BDC4647 |
| TRW | DF2665S |
| UAP | 34169 |
| VAICO | V1040016 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51734 |
| VOLKSWAGEN | 701615301B |
| WAGNER | BD125290, BD125696 |
| WAGNER BRAKE | BD125696 |
RAYBESTOS 96497R Fits Vehicles
- Volkswagen EuroVan (1992-1995)
