RAYBESTOS 980347 Part Description
Manufacturer
Product Description

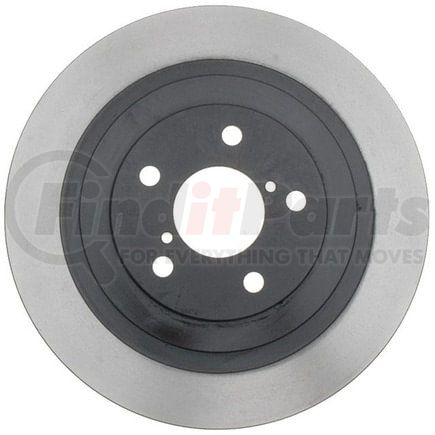

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2009-2005 Subaru Legacy Rear, 2007-2006 Subaru Impreza Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980347 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.285 IN |
| Center Hole Diameter | 58.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.63 IN |
| Discard Thickness | 16 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.71 IN |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 11.41 IN |
| Outside Diameter | 289.8 MM |
| Overall Height | 2.655 IN |
| Overall Height | 67.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352374504 |
RAYBESTOS 980347 Cross References
| Brand | Part Number |
|---|---|
| 90126173, 829352374504 | |
| ADVANCE AUTO PARTS | 832486, YH145744C |
| AUTOXTRA | AX900492 |
| AUTOZONE | 44322, 44322DG, 44322DL |
| Advance Auto Parts | YH145744P |
| BENDIX | PRT5754 |
| BOSCH | 48011206, 48011558 |
| BRAKEBEST | 48011206, 48011558, 980347, 980347FZN, 980347R, 980347RGS |
| BREMBO | 25953 |
| Brembo | 09.B041.11 |
| CENTRIC | 120.47025, 120.47025CRY, 121.47025, 126.47025CSL, 126.47025CSR, 126.47025SL, 126.47025SR, 127.47025CL, 127.47025CR, 127.47025L, 127.47025R, 128.47025CL, 128.47025CR, 128.47025L, 128.47025R, 227.47025L, 227.47025R, 320.47025 |
| Casting Numbers | 211722-C, 326315 |
| Centric Parts | 120.47025, 120.47025CRY, 121.47025, 126.47025CSL, 126.47025CSR, 126.47025SL, 126.47025SR, 127.47025CL, 127.47025CR, 127.47025L, 127.47025R, 128.47025CL, 128.47025CR, 128.47025L, 128.47025R, 227.47025L, 227.47025R, 320.47025 |
| DURA CORP | BR31396, BR900492 |
| DuraGo | 900492, BR900492 |
| MAGMA PRODUCTS | PSR523016 |
| NAPA BRAKES | TSR4813, TSR653 |
| NEOTEK | 106430GF |
| NEWTEK AUTOMOTIVE | 31396 |
| Newtek Automotive USA | 31396 |
| POWERSTOP | JBR1163EVC |
| PROMAX | 14-31396 |
| PRONTO | BR900492 |
| QUALIS | 44322 |
| SUBARU | 26700AE080, 26700AE081 |
| TRW | 7328, DF4813S, DF7328, DF7328S |
| UAP | 31396 |
| Ultra Brake | SU-799 |
| WABCO | PS126594 |
| WABCO - Archived | PS126594 |
| WAGNER | BD126594E, BD126594 |
| WAGNER BRAKE | BD126594 |
| WINHERE | 6620351 |
| WORLDPAC | 1407-79967, 1427-530230 |
| Wagner Brake | BD126594E |
RAYBESTOS 980347 Fits Vehicles
- Subaru Impreza (2006-2007)
- Subaru Legacy (2005-2009)
