RAYBESTOS 680688 Part Description
Manufacturer
Product Description

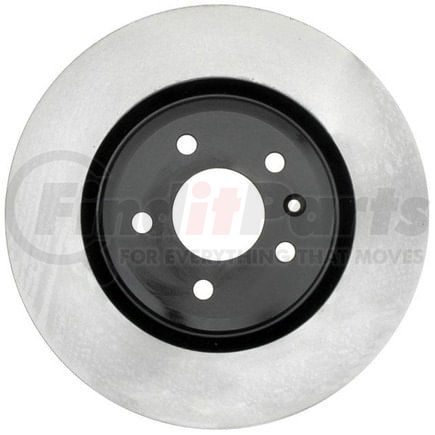

Raybestos Specialty - Truck Brake Rotor
Application Summary
2009 Ford Flex Front, 2009 Lincoln MKS Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680688 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.12 IN |
| Discard Thickness | 28.45 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Nominal Thickness | 1.18 IN |
| Nominal Thickness | 29.95 MM |
| Outside Diameter | 12.811 IN |
| Outside Diameter | 325.4 MM |
| Overall Height | 1.854 IN |
| Overall Height | 47.1 MM |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352675540 |
RAYBESTOS 680688 Cross References
| Brand | Part Number |
|---|---|
| DYN-6249, 829352675540 | |
| ADVANCE AUTO PARTS | 270345, YH270345 |
| AUTOPARTSOURCE | 492925 |
| AUTOXTRA | AX900632 |
| BENDIX | PRT5842 |
| BRAKEBEST | 680688, 680688FZN, 680688R, 680688RGS, 680758RGS |
| Brembo | 09.C282.11 |
| CENTRIC | 120.61094, 120.61094CRY, 121.61094, 126.61094SL, 126.61094SR, 127.61094L, 127.61094R, 320.61094 |
| Centric Parts | 120.61094, 120.61094CRY, 121.61094, 126.61094SL, 126.61094SR, 127.61094L, 127.61094R, 320.61094 |
| DURA CORP | BR54166, BR900632, BR90063202 |
| DuraGo | 900632, BR900632, BR90063202 |
| FORD | 8A8Z1125A |
| MAGMA PRODUCTS | PSR205239 |
| NEOTEK | 1071093GF |
| NEWTEK AUTOMOTIVE | 54166 |
| Newtek Automotive USA | 54166 |
| PROMAX | 14-54166 |
| PRONTO | BR900632 |
| Qualis | 42262 |
| UAP | 54166 |
| WABCO | PS54166 |
| WABCO - Archived | PS54166 |
| WINHERE | 6621008 |
RAYBESTOS 680688 Fits Vehicles
- Lincoln MKS (2009)
- Ford Flex (2009)
