RAYBESTOS 980463 Part Description
Manufacturer
Product Description

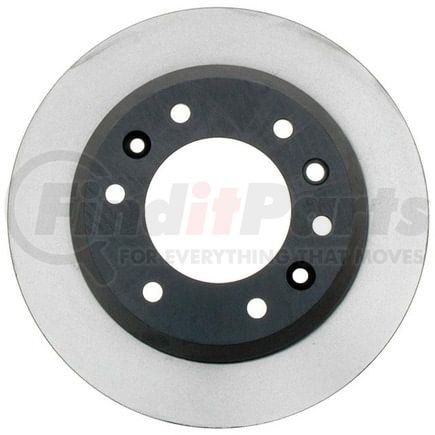

Raybestos Specialty - Truck Brake Rotor
Application Summary
2014,2012-2006 Kia Sedona Rear, 2009-2007 Hyundai Entourage Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980463 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.78 IN |
| Center Hole Diameter | 96 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.409 IN |
| Discard Thickness | 10.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.473 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 11.89 IN |
| Outside Diameter | 302 MM |
| Overall Height | 2.74 IN |
| Overall Height | 69.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352498347 |
RAYBESTOS 980463 Cross References
| Brand | Part Number |
|---|---|
| ASH85861, 829352498347 | |
| ADVANCE AUTO PARTS | YH200503, YH200503C, YH200503P |
| AUTOPARTSOURCE | 483170 |
| AUTOXTRA | AX900290 |
| AUTOZONE | 44602, 44602DG |
| BENDIX | PRT5780 |
| BOSCH | 28010833 |
| BRAKEBEST | 28010833, 980463, 980463FZN, 980463R, 980463RGS |
| BREMBO | 08.B561.10 |
| Brembo | 08.B561.11 |
| CENTRIC | 120.50018, 121.50018, 126.50018SL, 126.50018SR, 127.50018L, 127.50018R, 320.50018, 321.50018 |
| Casting Numbers | 326339 |
| Centric Parts | 120.50018, 121.50018, 126.50018SL, 126.50018SR, 127.50018L, 127.50018R, 320.50018, 321.50018 |
| DURA CORP | BR31430, BR900290, BR90029002 |
| DuraGo | 60341, 900290, BR60341, BR900290, BR90029002 |
| KIA | 584114D500 |
| MAGMA PRODUCTS | PSR285070 |
| NEOTEK | 106948GF |
| NEWTEK AUTOMOTIVE | 31430 |
| Newtek Automotive USA | 31430 |
| Omnicraft | QBRR70 |
| POWERSTOP | JBR1517EVC |
| PROMAX | 14-31430 |
| PRONTO | BR900290 |
| QUALIS | 44602 |
| TopNotch | TN980463GEO |
| UAP | 2031430, 31430 |
| Ultra Brake | HY-371 |
| WABCO | PS126441 |
| WABCO - Archived | PS126441 |
| WAGNER | BD126441, BD126441E |
| WAGNER BRAKE | BD126441, BD126441E |
| WINHERE | 661789 |
| WORLDPAC | 1407-80278 |
RAYBESTOS 980463 Fits Vehicles
- Hyundai Entourage (2007-2010)
- Kia Sedona (2006-2012, 2014)
