(888) 312-8812 Login SignupRAYBESTOS 96490 Raybestos Specialty - Street Performance Brake Rotor
$74.73
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96490 Part Description
Manufacturer
Product Description

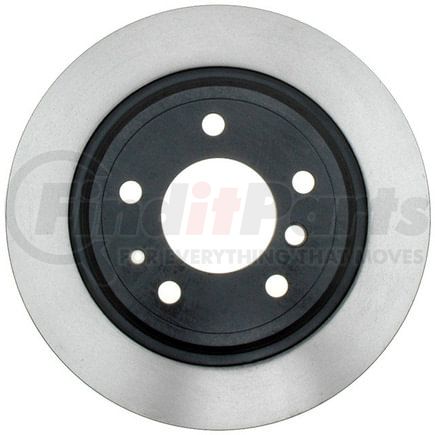

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1995-1989 BMW 525i Rear, 1993-1989 BMW 535i Rear, 1995-1994 BMW 530i Rear, 1993 BMW 525iT Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96490 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.955 IN |
| Center Hole Diameter | 75.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.591 IN |
| Mounting Bolt Hole Diameter | 15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.39 IN |
| Nominal Thickness | 9.9 MM |
| Outside Diameter | 11.8 IN |
| Outside Diameter | 299.7 MM |
| Overall Height | 2.4 IN |
| Overall Height | 60.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999790422 |
RAYBESTOS 96490 Cross References
| Brand | Part Number |
|---|---|
| 030999790422, 120.34025 | |
| ADVANCE AUTO PARTS | 141624, YH141624 |
| AMERICAN REMANUFACTURED | 789-62026, 89-62026 |
| ATE BRAKE PRODUCTS | 410117, SP00041 |
| AUTOSPECIALTY | EBR289, EBR289E |
| AUTOXTRA | AX34065 |
| AUTOZONE | 34065, 34065DG |
| BENDIX | 141624 |
| BMW | 34211162305 |
| BRAKE HEADQUARTERS | BR05144 |
| BRAKEBEST | 15010069, 96490, 96490R, 96490RGS, BD125392 |
| BREMBO | 08.5174.34 |
| CALIFORNIA DRUM & ROTOR | 125392 |
| CENTRIC | 120.34025, 121.34025, 126.34025SL, 126.34025SR, 127.34025CL, 127.34025CR, 127.34025L, 127.34025R, 128.34025CL, 128.34025CR, 128.34025L, 128.34025R |
| CONTINENTAL-CONTITECH | CW10117 |
| Casting Numbers | 211101-C, 325855, 340651 |
| Centric Parts | 120.34025, 121.34025, 126.34025SL, 126.34025SR, 127.34025CL, 127.34025CR, 127.34025L, 127.34025R, 128.34025CL, 128.34025CR, 128.34025L, 128.34025R |
| DELPHI | RB512 |
| DURA CORP | BR34065 |
| DuraGo | BR34065 |
| EUROROTOR | BM723 |
| GREN | 403201 |
| MIGHTY DISTRIBUTING SYSTEM | 34065 |
| NEWTEK AUTOMOTIVE | 34065 |
| Newtek Automotive USA | 34065 |
| PEP BOYS | 34065G |
| PROMAX | 14-34065 |
| PRONTO | BR34065 |
| QUALIS | 34065 |
| QUALITY BRAND | 34065 |
| Qualis | 3451 |
| STANDARD ROTORS AND DRUMS | 34065 |
| THE UNIVERSAL GROUP | 111666 |
| TRW | 2557 |
| UAP | 34065 |
| Universal | 111666 |
| VAICO | V2040006 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51066, X51733 |
| WAGNER | BD125392 |
| WAGNER BRAKE | BD125392 |
| WINHERE | 441182, YH1182 |
RAYBESTOS 96490 Fits Vehicles
- BMW 525iT (1993)
- BMW 535i (1989-1993)
- BMW 530i (1994-1995)
- BMW 525i (1989-1995)
