(888) 312-8812 Login SignupRAYBESTOS 580044 Raybestos Specialty - Truck Brake Rotor
$6849
Limited availability at this price!
1 Day Lead Time
Get as soon as Thursday, Oct 8
RAYBESTOS 580044 Part Description
Manufacturer
Product Description

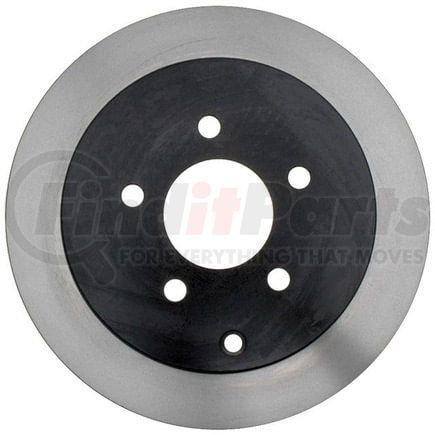

Raybestos Specialty - Truck Brake Rotor
Application Summary
2007-2002 Buick Rendezvous Rear, 2004-2002 Chevrolet Venture Rear, 2004-2002 Pontiac Montana Rear, 2005-2001 Pontiac Aztek Rear, 2004-2002 Oldsmobile Silhouette Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring:Optimal coolingReduced fadeLess noiseIncreased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 580044 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.78 IN |
| Center Hole Diameter | 70.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.354 IN |
| Discard Thickness | 9 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.546 IN |
| Mounting Bolt Hole Diameter | 13.85 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.435 IN |
| Nominal Thickness | 11.05 MM |
| Outside Diameter | 11.43 IN |
| Outside Diameter | 290.3 MM |
| Overall Height | 1.79 IN |
| Overall Height | 45.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00753497928844 |
RAYBESTOS 580044 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-875 |
| ADVANCE AUTO PARTS | 145359, YH145359, YH145359C, YH145359P |
| AUTOSPECIALTY | AR8270, AR8270E |
| AUTOXTRA | 125774, 80580044, AX55078 |
| AUTOZONE | 55078, 55078DG, 55078DL, DL55078 |
| BENDIX | 145359 |
| BOSCH | 25010567, RBR55078 |
| BRAKEBEST | 25010567, 580044, 580044FZN, 580044R, 580044RGS, 81-125774, BD125774 |
| BREMBO | 08.9107.85, 27280 |
| Brembo | 08.9107.11 |
| CENTRIC | 120.66048, 121.66048, 126.66048CSL, 126.66048SL, 126.66048SR, 320.66048 |
| CONTINENTAL-CONTITECH | CW11707 |
| Casting Numbers | 18026722, 211400-C, 325562 |
| Centric Parts | 120.66048, 121.66048, 126.66048CSL, 126.66048SL, 126.66048SR, 320.66048 |
| DURA CORP | BR55078, BR5507802 |
| DuraGo | BR55078, BR5507802 |
| GM | 18060646, 19149233 |
| GREN | 689001 |
| GUARDIAN | 52-125774 |
| General Motors | 18060646, 19149233 |
| MIGHTY DISTRIBUTING SYSTEM | 55078 |
| MONROE BRAKES | BD125774 |
| NEOTEK | 107276GF |
| NEWTEK AUTOMOTIVE | 55078 |
| Newtek Automotive USA | 55078 |
| PEP BOYS | 55078G |
| POWERSTOP | AR8270EVC |
| PROMAX | 14-55078 |
| PRONTO | BR55078 |
| QUALIS | 55078 |
| QUALITY BRAND | 55078, Q4043 |
| STANDARD ROTORS AND DRUMS | 55078 |
| TRUSTAR | 493195 |
| TopNotch | TN580044GEO |
| UAP | 55078 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51477 |
| WABCO | PS125774 |
| WABCO - Archived | PS125774 |
| WAGNER | BD125774E, BD125774 |
| WAGNER BRAKE | BD125774, BD125774E |
| WINHERE | 661525 |
| WORLDPAC | 1407-25875 |
RAYBESTOS 580044 Fits Vehicles
- Buick Rendezvous (2002-2007)
- Chevrolet Venture (2002-2004)
- Oldsmobile Silhouette (2002-2004)
- Pontiac Aztek (2001-2005)
- Pontiac Montana (2002-2004)
