RAYBESTOS 980199 Part Description
Manufacturer
Product Description

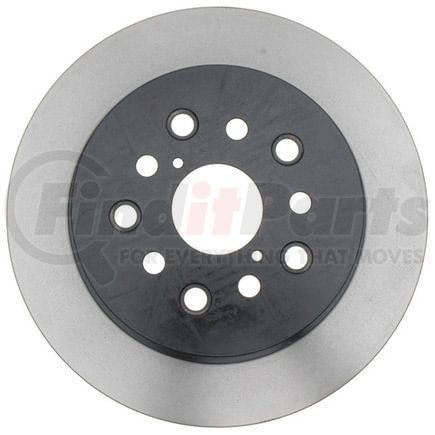

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2006-2001 Lexus LS430 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980199 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.441 IN |
| Center Hole Diameter | 62 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.571 IN |
| Discard Thickness | 14.5 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.573 IN |
| Mounting Bolt Hole Diameter | 14.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.63 IN |
| Nominal Thickness | 16 MM |
| Outside Diameter | 12.205 IN |
| Outside Diameter | 310 MM |
| Overall Height | 2.646 IN |
| Overall Height | 67.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352607763 |
RAYBESTOS 980199 Cross References
| Brand | Part Number |
|---|---|
| BRC289RM, 829352607763 | |
| ADVANCE AUTO PARTS | YH200385, YH200385C |
| AUTOXTRA | AX900080 |
| AUTOZONE | 083-2910, 31601, 31601DG |
| BENDIX | PRT5849 |
| BRAKEBEST | 50011463, 980199, 980199R, 980199RGS |
| BREMBO | 09.B453.10 |
| CENTRIC | 120.44123, 121.44123, 126.44123SL, 126.44123SR, 320.44123 |
| Centric Parts | 120.44123, 121.44123, 126.44123SL, 126.44123SR, 320.44123 |
| DURA CORP | BR31496, BR900080 |
| DuraGo | 900080, BR900080 |
| MAGMA PRODUCTS | PSR563074 |
| NEOTEK | 106384GF |
| NEWTEK AUTOMOTIVE | 31496 |
| Newtek Automotive USA | 31496 |
| PROMAX | 14-31496 |
| Qualis | 44628 |
| TOYOTA | 4243150030, 4243150070, 4243150080 |
| TRW | DF7826 |
| UAP | 31496 |
| WABCO | PS126228 |
| WABCO - Archived | PS126228 |
| WAGNER | BD126228, BD126228E |
| WAGNER BRAKE | BD126228, BD126228E |
| WINHERE | 6620436 |
| WORLDPAC | 1407-78755, 1427-719977 |
RAYBESTOS 980199 Fits Vehicles
- Lexus LS430 (2001-2006)
