Name: Raybestos 580722 Brake Parts Inc Raybestos Specialty - Street Performance Disc Brake Rotor
SKU: 580722
Price: 88.99 USD
Availability: InStock

RAYBESTOS part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

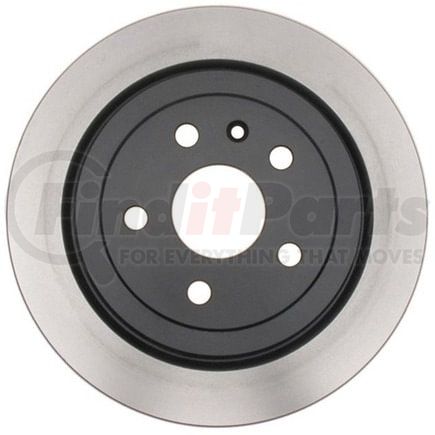

Raybestos Specialty - Street Performance Brake Rotor

Application Summary

2015-2010 Chevrolet Camaro Rear, 2014-2008 Cadillac CTS Rear

Product Attributes

ABS Tone Ring Included	No
Bearings Included	No
Center Hole Diameter	2.65 IN
Center Hole Diameter	67.3 MM
Construction	Full Cast
9565	Drum-In-Hat
9540	No
Discard Thickness	0.85 IN
Discard Thickness	21.6 MM
Grade Type	Regular
Harmonize Code	8708.30.5030
Inside Diameter	9.177 IN
Inside Diameter	233.1 MM
Material	Cast Iron
Mounting Bolt Hole Circle Diameter	4.72 IN
Mounting Bolt Hole Circle Diameter	119.9 MM
Mounting Bolt Hole Diameter	0.645 IN
Mounting Bolt Hole Diameter	16.4 MM
Nominal Thickness	0.91 IN
Nominal Thickness	23.1 MM
Outside Diameter	12.4 IN
Outside Diameter	314.95 MM
Overall Height	1.89 IN
Overall Height	48 MM
Salability Restrictions	No
Solid Or Vented Type Rotor	Vented
Stud/Lug Hole Diameter	0.645 IN
Stud/Lug Hole Diameter	16.4 MM
Stud/Lug Hole Quantity	5
Surface Type	Smooth
UNSPSC Code	25171715
