(888) 312-8812 Login SignupRAYBESTOS 580331 Raybestos Specialty - Street Performance Brake Rotor
$67.83
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 580331 Part Description
Manufacturer
Product Description

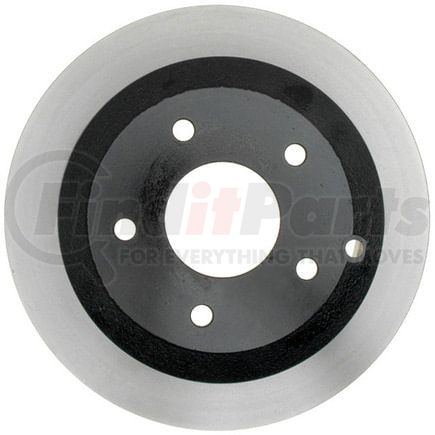

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2006-2005 Pontiac GTO Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 580331 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.756 IN |
| Center Hole Diameter | 70 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.63 IN |
| Discard Thickness | 16 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.346 IN |
| Inside Diameter | 212 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.709 IN |
| Nominal Thickness | 18 MM |
| Outside Diameter | 11.248 IN |
| Outside Diameter | 285.7 MM |
| Overall Height | 3.13 IN |
| Overall Height | 79.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352675458 |
RAYBESTOS 580331 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200480, YH200480C, YH200480P |
| AUTOZONE | 41221, 41221DG |
| BENDIX | PRT5864 |
| BRAKEBEST | 580331, 580331RGS |
| CENTRIC | 120.62090, 120.62090CRY, 121.62090, 126.62090CSL, 126.62090CSR, 126.62090SL, 126.62090SR, 127.62090CL, 127.62090CR, 127.62090L, 127.62090R, 128.62090CL, 128.62090CR, 128.62090L, 128.62090R |
| Centric Parts | 120.62090, 120.62090CRY, 121.62090, 126.62090CSL, 126.62090CSR, 126.62090SL, 126.62090SR, 127.62090CL, 127.62090CR, 127.62090L, 127.62090R, 128.62090CL, 128.62090CR, 128.62090L, 128.62090R |
| DURA CORP | BR55109, BR900274 |
| DuraGo | 60285, 900274, BR60285, BR900274, BR90274 |
| Dynamic Friction Company | 604-52017 |
| GM | 92228519, 92168567 |
| General Motors | 92168567, 92228519 |
| NEWTEK AUTOMOTIVE | 55109 |
| Newtek Automotive USA | 55109 |
| PROMAX | 14-55109 |
| PRONTO | BR900274 |
| Qualis | 41221 |
| UAP | 55109 |
| WAGNER BRAKE | BD126291 |
| WINHERE | 6620687 |
RAYBESTOS 580331 Fits Vehicles
- Pontiac GTO (2005-2006)
