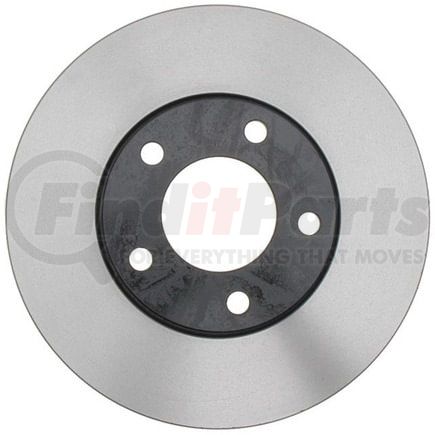

(888) 312-8812 Login SignupRAYBESTOS 96065 Raybestos Specialty - Street Performance Brake Rotor
$7349
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jun 25
RAYBESTOS 96065 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1999-1989 Nissan Maxima Front, 1999-1996 INFINITI I30 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96065 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Center Hole Diameter | 68.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.865 IN |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 11.015 IN |
| Outside Diameter | 279.8 MM |
| Overall Height | 1.935 IN |
| Overall Height | 49.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999234124 |
RAYBESTOS 96065 Cross References
| Brand | Part Number |
|---|---|
| 190-6333, 30999234124 | |
| ADVANCE AUTO PARTS | 141441, YH141441, YH141441C |
| ALTROM IMPORTS | A03218 |
| AMERICAN REMANUFACTURED | 789-04043, 89-04043 |
| API | 1407-25314 |
| AUTOPART INTERNATIONAL | 78381 |
| AUTOSPECIALTY | JBR505, JBR505E |
| AUTOXTRA | 61956, 8096065 |
| AUTOZONE | 3218, 3218B, 3218DG, DL3218 |
| BECK/ARNLEY | 080-2297, 083-2297, 083-2610 |
| BENDIX | 141441 |
| BOSCH | RBR3218 |
| BRAKE HEADQUARTERS | BR04104 |
| BRAKE PRO | 4618576 |
| BRAKEBEST | 40011034, 81-61956, 96064FZN, 96065, 96065R, 96065RGS, BD61956 |
| BREMBO | 09.5254.10, 25314 |
| Bridgestone | 7095214 |
| CALIFORNIA DRUM & ROTOR | 61956 |
| CENTRIC | 120.42043, 121.42043, 125.42043, 125.42043CRY, 126.42043CSL, 126.42043CSR, 126.42043SL, 126.42043SR, 127.42043L, 127.42043R, 128.42043L, 128.42043R, 320.42043, 321.42043 |
| CENTURY | 9433 |
| CONTINENTAL-CONTITECH | CW22712 |
| Casting Numbers | 325086, 6781 |
| Centric Parts | 120.42043, 121.42043, 125.42043, 125.42043CRY, 126.42043CSL, 126.42043CSR, 126.42043SL, 126.42043SR, 127.42043L, 127.42043R, 128.42043L, 128.42043R, 320.42043, 321.42043 |
| DATSUN/NISSAN | 402062L903, 40206880, 4020688000, 40206880000, 4020688E01, 4020688E03, 4020688E04, 4020688E05 |
| DAYTON WALTHER | D7987 |
| DELPHI | RB377 |
| DURA CORP | BR3218 |
| DuraGo | BR3218 |
| GIRLING | GR837 |
| GREN | 33002 |
| GUARDIAN | 52-61956 |
| INTERBRAKES | NS361V |
| ITM ENGINE COMPONENTS | 1600566 |
| MAGMA PRODUCTS | PSR423031 |
| MCI | 3956 |
| MIDAS | BR1614, BR2030 |
| MIGHTY DISTRIBUTING SYSTEM | 3218 |
| MONROE BRAKES | BD61956 |
| NEOTEK | 106115GF |
| NEWTEK AUTOMOTIVE | 3218 |
| Newtek Automotive USA | 3218 |
| Nissan | 402062L903, 40206880, 4020688000, 40206880000, 4020688E01, 4020688E03, 4020688E04, 4020688E05 |
| PARTS MASTER | P61956 |
| POWERSTOP | JBR505EVC, JBR918EVC |
| PROMAX | 14-31122, 14-3218 |
| PRONTO | BR3218 |
| QUALIS | 3218 |
| QUALITEE INTERNATIONAL | 64-76-590 |
| QUALITY BRAND | 3218 |
| QUINTON HAZELL | BDC3813 |
| ROCKHILL | 3218 |
| STANDARD ROTORS AND DRUMS | 3218 |
| THE UNIVERSAL GROUP | 109180, 109801 |
| TRUSTAR | 476590, R76590 |
| TRW | 2574, DF2574S |
| UAP | 3218 |
| Universal | 109180, 109801 |
| VERA | 3405680 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50473 |
| WABCO | PS61956 |
| WABCO - Archived | PS61956 |
| WAGNER | BD61956, BD61956E |
| WAGNER BRAKE | BD61956 |
| WINHERE | 442110, YH2110 |
| WORLDPAC | 1407-78381 |
| Wagner Brake | BD61956E |
RAYBESTOS 96065 Fits Vehicles
- Nissan Maxima (1989-1999)
- INFINITI I30 (1996-1999)
