(888) 312-8812 Login SignupRAYBESTOS 76920R Raybestos R-Line Brake Rotor
$129.75
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 76920R Part Description
Manufacturer
Product Description

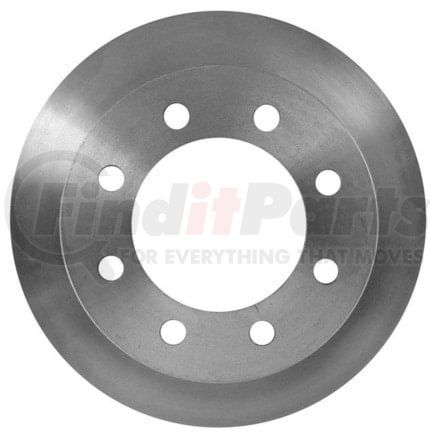

Raybestos R-Line Brake Rotor
Application Summary
2002-2000 Dodge Ram 2500 Front, 2002-2000 Dodge Ram 3500 Front, 2002-2000 Dodge Ram 4000 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 76920R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.82 IN |
| Center Hole Diameter | 122.45 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.32 IN |
| Discard Thickness | 33.55 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.66 IN |
| Mounting Bolt Hole Diameter | 16.75 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.395 IN |
| Nominal Thickness | 35.45 MM |
| Outside Diameter | 12.85 IN |
| Outside Diameter | 326.4 MM |
| Overall Height | 4.01 IN |
| Overall Height | 101.85 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352367131 |
RAYBESTOS 76920R Cross References
| Brand | Part Number |
|---|---|
| 8RG2043S, 829352367131 | |
| ADVANCE AUTO PARTS | 145283, YH145283, YH145283C, YH145283P |
| AMERICAN REMANUFACTURED | 89-40046 |
| AUTOPARTSOURCE | 491170 |
| AUTOSPECIALTY | AR8746, AR8746E |
| AUTOZONE | 5393, 5393DG, DL5393 |
| BENDIX | 145283 |
| BRAKEBEST | 16010165, 76920, 76920FZN, 76920PER, 76920R, 76920RGS, 81-125745, BD125745 |
| BREMBO | 09.8916.85, 27126 |
| Bridgestone | 7008070 |
| CENTRIC | 120.67046, 120.67046CRY, 121.67046, 125.67046, 125.67046CRY, 126.67046CSL, 126.67046CSR, 126.67046SL, 126.67046SR, 127.67046CL, 127.67046CR, 127.67046L, 127.67046R, 128.67046CL, 128.67046CR, 128.67046L, 128.67046R, 227.67046L, 227.67046R, 320.67046, 320.67046F |
| CHRYSLER | 05015230AA, 5015230AA |
| CONTINENTAL-CONTITECH | CW36700 |
| Casting Numbers | 211277-C, 325517 |
| Centric Parts | 120.67046, 120.67046CRY, 121.67046, 125.67046, 125.67046CRY, 126.67046CSL, 126.67046CSR, 126.67046SL, 126.67046SR, 127.67046CL, 127.67046CR, 127.67046L, 127.67046R, 128.67046CL, 128.67046CR, 128.67046L, 128.67046R, 227.67046L, 227.67046R, 320.67046, 320.67046F |
| DURA CORP | BR5393 |
| DuraGo | BR5393 |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12572051 |
| GUARDIAN | 52-125745 |
| MAGMA PRODUCTS | PMR145151 |
| MIGHTY DISTRIBUTING SYSTEM | 5393 |
| MONROE BRAKES | BD125745 |
| NEWTEK AUTOMOTIVE | 5393 |
| Newtek Automotive USA | 5393 |
| Omnicraft | QBRR53 |
| POWERSTOP | AR8746EVC |
| PROMAX | 14-5393 |
| Parts Master | 125745 |
| QUALIS | 5393 |
| QUALITY BRAND | 5393 |
| STANDARD ROTORS AND DRUMS | 5393 |
| THE UNIVERSAL GROUP | 103159 |
| UAP | 5393 |
| Ultra Brake | 5393 |
| Universal | 103159 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51342 |
| WABCO | PS125745 |
| WABCO - Archived | PS125745 |
| WAGNER | BD125745, BD125745E |
| WAGNER BRAKE | BD125745 |
| WINHERE | 662662, YH2662 |
| WORLDPAC | 1407-25431 |
| Wagner Brake | BD125745E |
RAYBESTOS 76920R Fits Vehicles
- Dodge Ram 1500 (2000)
- Dodge Ram 4000 (2000-2002)
- Dodge Ram 3500 Van (2001-2002)
- Dodge Ram 3500 (2000-2002)
- Dodge Ram 2500 (2000-2002)
