RAYBESTOS 96575 Part Description
Manufacturer
Product Description

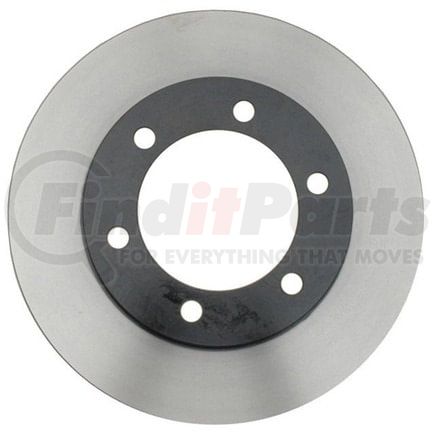

Raybestos Specialty - Truck Brake Rotor
Application Summary
2004-1995 Toyota Tacoma Front, 2002-1996 Toyota 4Runner Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 96575 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.25 IN |
| Center Hole Diameter | 107.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.87 IN |
| Nominal Thickness | 22.1 MM |
| Outside Diameter | 11.68 IN |
| Outside Diameter | 296.65 MM |
| Overall Height | 2.77 IN |
| Overall Height | 70.35 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999953216 |
RAYBESTOS 96575 Cross References
| Brand | Part Number |
|---|---|
| 29536349, 30999953216 | |
| ADVANCE AUTO PARTS | 145078, N100062949APO, YH145078, YH145078C, YH145078P |
| AMERICAN REMANUFACTURED | 789-22101, 89-22101 |
| ATE BRAKE PRODUCTS | 422253 |
| AUTOPART INTERNATIONAL | 78612 |
| AUTOSPECIALTY | JBR791, JBR791E |
| AUTOXTRA | 125503, 8096575, AX31165 |
| AUTOZONE | 31165, 31165B, 31165DG, DL31165 |
| Autoxtra | AX31165P |
| BECK/ARNLEY | 080-2653, 083-2653 |
| BENDIX | 145078 |
| BOSCH | RBR31165 |
| BRAKE HEADQUARTERS | BR06294 |
| BRAKEBEST | 50011222, 81-125503, 96575, 96575FZN, 96575PER, 96575R, 96575RGS, BD125503 |
| BREMBO | 09.8193.80, 25513, 09.8193.81 |
| CALIFORNIA DRUM & ROTOR | 125503 |
| CENTRIC | 120.44109, 120.44109CRY, 121.44109, 125.44109, 125.44109CRY, 126.44109CSL, 126.44109CSR, 126.44109SL, 126.44109SR, 127.44109CL, 127.44109CR, 127.44109L, 127.44109R, 128.44109CL, 128.44109CR, 128.44109L, 128.44109R, 227.44109L, 227.44109R, 320.44109, 321.44109 |
| CONTINENTAL-CONTITECH | CW22706 |
| Casting Numbers | 211066-C, 311651, 325434, 5178 |
| Centric Parts | 120.44109, 120.44109CRY, 121.44109, 125.44109, 125.44109CRY, 126.44109CSL, 126.44109CSR, 126.44109SL, 126.44109SR, 127.44109CL, 127.44109CR, 127.44109L, 127.44109R, 128.44109CL, 128.44109CR, 128.44109L, 128.44109R, 227.44109L, 227.44109R, 320.44109, 321.44109 |
| DELPHI | RB666 |
| DURA CORP | BR31165 |
| DuraGo | BR31165 |
| EIS BRAKES | D17805 |
| EUROROTOR | TO6111 |
| GREN | 18802 |
| GUARDIAN | 52-125503 |
| MAGMA PRODUCTS | PSR565151 |
| MIDAS | BR2011 |
| MIGHTY DISTRIBUTING SYSTEM | 31165 |
| MONROE BRAKES | BD125503 |
| NEOTEK | 106353GF |
| NEWTEK AUTOMOTIVE | 31165 |
| Newtek Automotive USA | 31165 |
| Omnicraft | QBRR48 |
| PARTS MASTER | P125503 |
| PROMAX | 14-31165 |
| PRONTO | BR31165 |
| QUALIS | 31165 |
| QUALITEE INTERNATIONAL | 64-79-125 |
| QUALITY BRAND | 31165, Q099 |
| STANDARD ROTORS AND DRUMS | 31165 |
| THE UNIVERSAL GROUP | 107008 |
| TOYOTA | 4351204020, 4351235280, 4351235310 |
| TRUSTAR | 479125, R79125 |
| TopNotch | TN96575GEO |
| UAP | 2031165, 31165 |
| Ultra Brake | TO-6111 |
| Universal | 107008 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50959 |
| WABCO | PS125503 |
| WABCO - Archived | PS125503 |
| WAGNER | BD125503E, BD180195 |
| WAGNER BRAKE | BD125503, BD125503E |
| WINHERE | 442246, YH2246 |
| WORLDPAC | 1407-78612, 1427-731960 |
RAYBESTOS 96575 Fits Vehicles
- Toyota Tacoma (1995-2004)
- Toyota 4Runner (1995-2002)
