RAYBESTOS 780459 Part Description
Manufacturer
Product Description

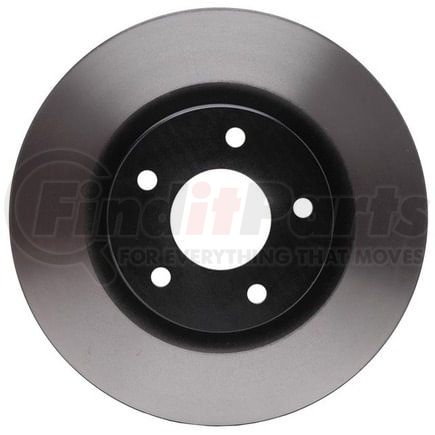

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2017-2007 Jeep Patriot Front, 2017-2007 Jeep Compass Front, 2014-2008 Dodge Avenger Front, 2014-2011 Chrysler 200 Front, 2012-2007 Dodge Caliber Front, 2014-2008 Mitsubishi Lancer Front, 2010-2007 Chrysler Sebring Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 780459 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.961 IN |
| Discard Thickness | 24.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.028 IN |
| Nominal Thickness | 26.1 MM |
| Outside Diameter | 11.575 IN |
| Outside Diameter | 294 MM |
| Overall Height | 1.799 IN |
| Overall Height | 45.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352441848 |
RAYBESTOS 780459 Cross References
| Brand | Part Number |
|---|---|
| 94140680, 829352441848 | |
| ADVANCE AUTO PARTS | YH145706, YH145706C, YH145706P |
| ATE BRAKE PRODUCTS | 426164, 426170 |
| AUTOPARTSOURCE | 591195 |
| AUTOZONE | 43153, 43153DG, 43153DL, DL43153 |
| BENDIX | PRT5706 |
| BOSCH | 16011438 |
| BRAKEBEST | 16011438, 780459, 780459FZN, 780459R, 780459RGS |
| BREMBO | 09.A637.10, 09.A637.11 |
| CENTRIC | 120.63067, 120.63067CRY, 121.63067, 126.63067CSL, 126.63067CSR, 126.63067SL, 126.63067SR, 227.63067L, 227.63067R, 320.63067 |
| CHRYSLER | 05105514AA, 5105514AA |
| Casting Numbers | 326251 |
| Centric Parts | 120.63067, 120.63067CRY, 121.63067, 126.63067CSL, 126.63067CSR, 126.63067SL, 126.63067SR, 227.63067L, 227.63067R, 320.63067 |
| DURA CORP | BR3134602, BR53038, BR900596, BR900752 |
| DuraGo | BR31346, BR31346-02, BR900752 |
| Eurorotor | 53235 |
| MAGMA PRODUCTS | PSR145180 |
| MITSUBISHI | 4615A075, 4615A117 |
| MONROE BRAKES | BD126509 |
| NAPA BRAKES | SDK6572 |
| NEOTEK | 107317GF |
| NEWTEK AUTOMOTIVE | 53038 |
| Newtek Automotive USA | 53038 |
| POWERSTOP | AR8369EVC |
| PROMAX | 14-53038, 20-53038 |
| PRONTO | BR31346 |
| QUALIS | 43153 |
| TRUSTAR | 491195 |
| TRW | 4932, DF7792 |
| TopNotch | TN780459GEO |
| UAP | 2053038, 53038 |
| Ultra Brake | 53235 |
| WABCO | PS126509 |
| WABCO - Archived | PS126509 |
| WAGNER | BD126509, BD126509E |
| WAGNER BRAKE | BD126509, BD126509E |
| WINHERE | 6620795 |
| WORLDPAC | 1407-79992, 1427-731741 |
RAYBESTOS 780459 Fits Vehicles
- Mitsubishi Eclipse Cross (2018-2020, 2022-2023)
- Mitsubishi ASX (2013-2015)
- Mitsubishi RVR (2011-2018)
- Chrysler 200 (2011-2014)
- Mitsubishi Outlander Sport (2011-2023)
- Chrysler Cirrus (2009-2010)
- Mitsubishi Lancer (2008-2016)
- Dodge Avenger (2008-2014)
- Mitsubishi Outlander (2007-2020)
- Chrysler Sebring (2007-2010)
- Jeep Patriot (2007-2017)
- Jeep Compass (2007-2017)
- Dodge Caliber (2007-2012)
