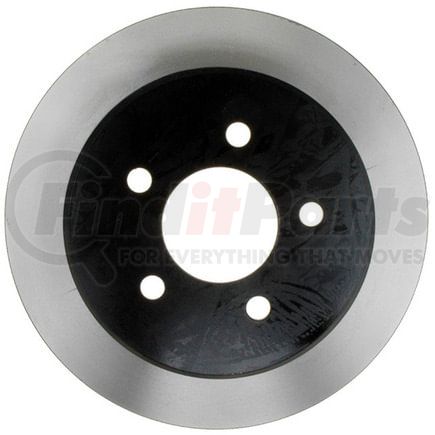

RAYBESTOS 66565 Raybestos Specialty - Truck Brake Rotor

★★★★★ (0) Write a Review
66565 by RAYBESTOS - Raybestos Specialty - Truck Brake Rotor
RAYBESTOS

$106.99

Limited availability at this price!

In Stock

Get it by Wednesday, Feb 25
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

RAYBESTOS 66565 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Truck Brake Rotor

Application Summary

2004-1998 Ford Ranger Rear, 2001-1995 Ford Explorer Rear, 2002-2001 Ford Explorer Sport Trac Rear, 2001-1997 Mercury Mountaineer Rear, 2002-2001 Ford Explorer Sport Rear

Features & Benefits

  • OE Fit, Form, and Function
  • Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
  • Cooling Vanes
  • We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
  • Coating
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • SAE Standard for Tensile Strength
  • Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
  • Turned Finish
  • A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box

RAYBESTOS 66565 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.8 IN
Center Hole Diameter 71.1 MM
Conventional Or Drum-In-Hat Type Rotor Drum-In-Hat
Directional or Non-Directional Brake Surface Non-Directional
Discard Thickness 0.433 IN
Discard Thickness 11 MM
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Diameter 0.578 IN
Mounting Bolt Hole Diameter 14.7 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.475 IN
Nominal Thickness 12.05 MM
Outside Diameter 11.22 IN
Outside Diameter 285 MM
Overall Height 2.3 IN
Overall Height 58.4 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00030999959232

RAYBESTOS 66565 Cross References

BrandPart Number
29542808, 30999959232
ADVANCE AUTO PARTS145052, YH145052, YH145052C, YH145052P
AMERICAN REMANUFACTURED789-42052, 89-42052
AUTOPART INTERNATIONAL25472
AUTOSPECIALTYAR8552, AR8552E
AUTOXTRA125463, 8066565, AX54032
AUTOZONE54032, 54032B, 54032DG, DL54032
BENDIX145052
BOSCHRBR54032
BRAKE HEADQUARTERSBR54673
BRAKEBEST20010309, 66565, 66565FZN, 66565R, 66565RGS, 81-125463, BD125463
BREMBO08.7518.80, 27045
Brembo08.7518.81
Bridgestone7002440
CALIFORNIA DRUM & ROTOR125463
CENTRIC120.65052, 120.65052CRY, 121.65052, 121.65052CRY, 125.65052, 126.65052CSL, 126.65052CSR, 126.65052SL, 126.65052SR, 127.65052CL, 127.65052CR, 127.65052L, 127.65052R, 128.65052CL, 128.65052CR, 128.65052L, 128.65052R, 227.65052L, 227.65052R, 320.65052, 320.65052F, 321.65052
CONTINENTAL-CONTITECHCW12700
Casting Numbers210809-C, 325210
Centric Parts120.65052, 120.65052CRY, 121.65052, 121.65052CRY, 125.65052, 126.65052CSL, 126.65052CSR, 126.65052SL, 126.65052SR, 127.65052CL, 127.65052CR, 127.65052L, 127.65052R, 128.65052CL, 128.65052CR, 128.65052L, 128.65052R, 227.65052L, 227.65052R, 320.65052, 320.65052F, 321.65052
DELPHIRB419
DURA CORPBR54032
DuraGoBR54032
EUROROTOR54136
FORD3760664, F5TZ2C026A, F5TZ2C026A2, YL2Z2C026BA
GREN648001
GUARDIAN52-125463
MAGMA PRODUCTSPSR205166
MIDASBR1994
MIGHTY DISTRIBUTING SYSTEM54032
MONROE BRAKESBD125463
MOTORCRAFTBRR59
NEOTEK107161GF
NEWTEK AUTOMOTIVE54032
Newtek Automotive USA54032
PARTS MASTERP125463
POWERSTOPAR8552EVC
PROMAX14-54032
PRONTOBR54032
QUALIS54032
QUALITEE INTERNATIONAL64-92-190
QUALITY BRAND54032, Q4125
STANDARD ROTORS AND DRUMS54032
THE UNIVERSAL GROUP102576
TRUSTAR492190, R92190
TopNotchTN66565GEO
UAP54032
Ultra Brake54136
Universal102576
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX51010
WABCOPS125463
WABCO - ArchivedPS125463
WAGNERBD125463, BD125463E
WAGNER BRAKEBD125463, BD125463E
WINHERE441122, YH1122
WORLDPAC1407-25472

RAYBESTOS 66565 Fits Vehicles

  • Ford Explorer Sport (2001-2002)
  • Ford Explorer Sport Trac (2001-2002)
  • Mercury Mountaineer (1997-2001)
  • Ford Ranger (1998-2004)
  • Ford Explorer (1995-2001)

RAYBESTOS 66565 Customer Reviews

No reviews yet

Be the first to review this product!

Write a Review

RAYBESTOS 66565 Questions & Answers

No questions yet

Be the first to ask a question about this product!
