(888) 312-8812 Login SignupRAYBESTOS 980500 Raybestos Specialty - Street Performance Brake Rotor
$108.74
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980500 Part Description
Manufacturer
Product Description

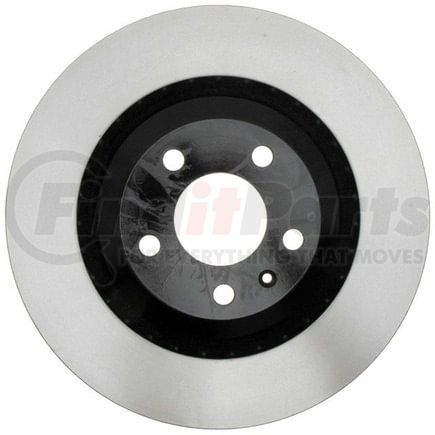

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2011-2005 Audi A6 Quattro Rear, 2011-2006 Audi A6 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980500 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.701 IN |
| Inside Diameter | 221 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22 MM |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330 MM |
| Overall Height | 1.933 IN |
| Overall Height | 49.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352704295 |
RAYBESTOS 980500 Cross References
| Brand | Part Number |
|---|---|
| 829352704295, 120.33101 | |
| ADVANCE AUTO PARTS | YH200366, YH200366C, YH200366P |
| ATE BRAKE PRODUCTS | 422223, SP22223 |
| AUDI | 4F0615601F |
| AUTOZONE | 78006, 78006DG |
| BENDIX | BPR5985, PRT5985 |
| BOSCH | 14010043, 14011493 |
| BRAKEBEST | 14010043, 14011493, 980500, 980500FZN, 980500R, 980500RGS |
| Brembo | 09.8842.2X, 09.8842.21 |
| CENTRIC | 120.33101, 121.33101, 125.33101, 125.33101CRY, 126.33101CSL, 126.33101CSR, 126.33101SL, 126.33101SR, 127.33101L, 127.33101R, 128.33101CL, 128.33101CR, 128.33101L, 128.33101R, 320.33101H |
| Centric Parts | 120.33101, 121.33101, 125.33101, 125.33101CRY, 126.33101CSL, 126.33101CSR, 126.33101SL, 126.33101SR, 127.33101L, 127.33101R, 128.33101CL, 128.33101CR, 128.33101L, 128.33101R, 320.33101H |
| DURA CORP | BR34320, BR900684 |
| DuraGo | 900684, BR900684 |
| NAPA BRAKES | SDK6390 |
| NEOTEK | 106085GF |
| NEWTEK AUTOMOTIVE | 34320 |
| Newtek Automotive USA | 34320 |
| POWERSTOP | EBR829EVC |
| PROMAX | 14-34320 |
| PRONTO | BR900684 |
| Qualis | 45451 |
| UAP | 34320 |
| VAICO | V1080093 |
| WAGNER BRAKE | BD180095 |
| WINHERE | 6620250 |
| WORLDPAC | 1427-530175 |
| Wagner Brake | BD180095E |
RAYBESTOS 980500 Fits Vehicles
- Audi A6 (2005-2011)
- Audi A6 Quattro (2005-2011)
