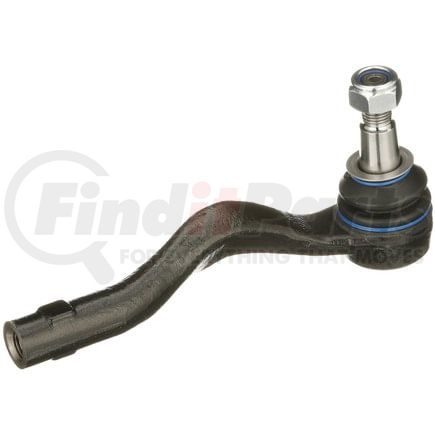

(888) 312-8812 Login SignupDELPHI TA5113 Tie Rod End
Tap to view 23 more
$4299
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI TA5113 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Tie Rod End
DELPHI TA5113 Specifications
Product Attributes
| Position(s) | Left Outer |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 14.00 MM |
| End 2 Thread Diameter | 0.551 IN |
| Housing Material | Steel |
| Adjustable | No |
| Greaseable | No |
| Weight | 2.2 lb |
| Cone Outside Diameter | 19.70 MM |
| Cone Outside Diameter | 0.776 IN |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| Head Drive Type | Hex |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 190.00 MM |
| Length - Stud Center to End | 7.480 IN |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| End 1 Thread Diameter | 0.551 IN |
| Shank Length | 19.70 MM |
| Stud Length | 19.70 MM |
| Grade Type | Standard Replacement |
| Boot Color | Black |
| Grade | Premium |
| Shank Length | 0.776 IN |
| Stud Length | 0.776 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604342923 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA5113 Cross References
DELPHI TA5113 Fits Vehicles
- Mercedes-Benz E400 (2015-2017)
- Mercedes-Benz E350 (2012-2014)
- Mercedes-Benz C250 (2010-2012)
- Mercedes-Benz C230 (2008-2009)
- Mercedes-Benz C350 (2008-2015)
- Mercedes-Benz C300 (2008-2014)
