(888) 312-8812 Login SignupRAYBESTOS 9893 Raybestos Specialty - Street Performance Brake Rotor
$6699
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Aug 7
RAYBESTOS 9893 Part Description
Manufacturer
Product Description

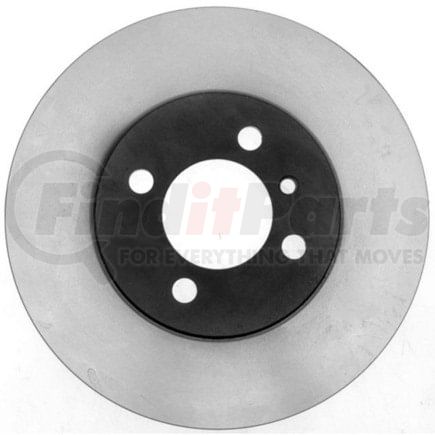

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1993-1987 BMW 325i Front, 1987-1984 BMW 325e Front, 1988-1986 BMW 325 Front, 1991-1987 BMW 325is Front, 1992-1991 BMW 318i Front, 1991 BMW 318is Front, 1991-1988 BMW 325iX Front, 1987-1986 BMW 325es Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 9893 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.603 IN |
| Center Hole Diameter | 66.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.803 IN |
| Discard Thickness | 20.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.87 IN |
| Nominal Thickness | 22.1 MM |
| Outside Diameter | 10.23 IN |
| Outside Diameter | 259.85 MM |
| Overall Height | 1.39 IN |
| Overall Height | 35.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999080523 |
RAYBESTOS 9893 Cross References
| Brand | Part Number |
|---|---|
| 030999080523, 120.34018 | |
| ADVANCE AUTO PARTS | 141346, YH141346, YH141346C |
| AMERICAN REMANUFACTURED | 789-62018, 89-62018 |
| AUTOPART INTERNATIONAL | 78787 |
| AUTOSPECIALTY | EBR219, EBR219E |
| AUTOXTRA | 61868, 809893, AX3469 |
| AUTOZONE | 3455, 3455B, 3455DG |
| AXXIS | 085-7070 |
| BECK/ARNLEY | 083-2120 |
| BENDIX | 141346 |
| BMW | 34111154749, 34111160915 |
| BOSCH | 15010060 |
| BRAKE HEADQUARTERS | BR05130 |
| BRAKE PRO | 4619893 |
| BRAKEBEST | 15010060, 81-61868, 9893, 9893R, 9893RGS, BD61868 |
| BREMBO | 09.4883.10, 25252 |
| CALIFORNIA DRUM & ROTOR | 61868 |
| CENTRIC | 120.34018, 121.34018, 125.34018, 125.34018CRY, 126.34018CSL, 126.34018CSR, 126.34018SL, 126.34018SR, 127.34018L, 127.34018R, 128.34018CL, 128.34018CR, 128.34018L, 128.34018R, 227.34018L, 227.34018R, 320.34018H |
| CENTURY | 9381 |
| CONTINENTAL-CONTITECH | CW22122 |
| Casting Numbers | 210827-C, 325339, 5180 |
| Centric Parts | 120.34018, 121.34018, 125.34018, 125.34018CRY, 126.34018CSL, 126.34018CSR, 126.34018SL, 126.34018SR, 127.34018L, 127.34018R, 128.34018CL, 128.34018CR, 128.34018L, 128.34018R, 227.34018L, 227.34018R, 320.34018H |
| DAYTON WALTHER | D7911 |
| DELPHI | RB29 |
| DURA CORP | BR3455, BR3469 |
| DuraGo | BR3469, BR3455 |
| EIS BRAKES | D17426 |
| GIRLING | GR250 |
| GREN | 401002 |
| GUARDIAN | 52-61868 |
| INTERBRAKES | BW171V |
| ITM ENGINE COMPONENTS | 1602314 |
| MAGMA PRODUCTS | PSR123017 |
| MCI | 4039 |
| MIDAS | BR1492 |
| MIGHTY DISTRIBUTING SYSTEM | 3455 |
| NEWTEK AUTOMOTIVE | 3455 |
| Newtek Automotive USA | 3455 |
| PARTS MASTER | P61868 |
| PROMAX | 14-3455 |
| PRONTO | BR3469 |
| QUALIS | 3455 |
| QUALITEE INTERNATIONAL | 64-12-130 |
| QUALITY BRAND | 3455 |
| QUINTON HAZELL | BDC3480 |
| ROCKHILL | 3469 |
| STANDARD ROTORS AND DRUMS | 3455 |
| TEKNOMAC | 14500 |
| THE UNIVERSAL GROUP | 111550, 111690 |
| TRUSTAR | 412130, R12130 |
| TRW | 2550, DF2550S |
| UAP | 3455 |
| Universal | 111550, 111690 |
| VAICO | V2080031 |
| VERA | 3405292 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50709 |
| WAGNER | BD61868 |
| WAGNER BRAKE | BD61868 |
| WINHERE | 442370, YH2370 |
RAYBESTOS 9893 Fits Vehicles
- BMW 325es (1986-1987)
- BMW 325iX (1988-1991)
- BMW 325is (1987-1991)
- BMW 325i (1987-1993)
- BMW 325e (1984-1987)
- BMW 325 (1986-1988)
- BMW 318is (1991)
- BMW 318i (1991-1992)
