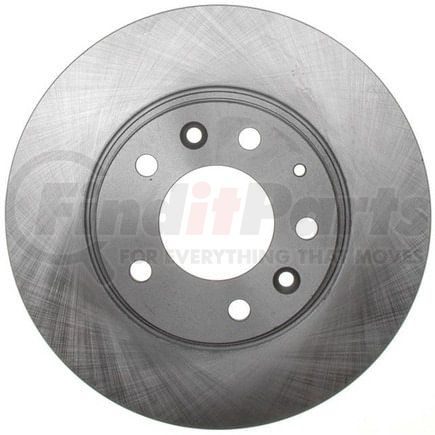

Raybestos 980288R - Raybestos R-Line Brake Rotor
$5299
MSRP: $79.02
Save: $26.03
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2005-2003 Mazda 6 Front
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 11.13 IN |
| Outside Diameter | 282.7 MM |
| Overall Height | 1.91 IN |
| Overall Height | 48.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00829352495735 |
Part Interchanges
- Mazda GK2Y3325XD
- Mazda GK2Y3325XE
- Mazda GK2Y3325XF
- Brembo 09.9131.10
- Brembo 09.9131.11
- Brembo 25871
- Mighty Distributing System 31367
- Wagner Brake BD126078
- Bendix 145597
- Quality Brand Q629
- VIPAR - Vehicle Indusrty Parts & Manufacturing X51684
- PowerStop JBR998EVC
- BrakeBest 34010885
- BrakeBest 980288
- BrakeBest 980288FZN
- BrakeBest 980288R
- BrakeBest 980288RGS
- Centric Parts 120.45063
- Centric Parts 121.45063
- Centric Parts 126.45063CSL
- Centric Parts 126.45063CSR
- Centric Parts 126.45063SL
- Centric Parts 126.45063SR
- Centric Parts 127.45063CL
- Centric Parts 127.45063CR
- Centric Parts 127.45063L
- Centric Parts 127.45063R
- Centric Parts 128.45063CL
- Centric Parts 128.45063CR
- Centric Parts 128.45063L
- Centric Parts 128.45063R
- Centric Parts 320.45063
- WABCO - Archived PS126078
- AutoZone 31367
- AutoZone 31367DG
- Advance Auto Parts YH145597
- Advance Auto Parts YH145597C
- Advance Auto Parts YH145597P
- Autopartsource 474680
- Autoxtra AX31367
- Autoxtra AX54142
- Casting Numbers 211673-C
- Casting Numbers 326185
- Dura Corp BR31367
- Winhere 6620539
- Newtek Automotive USA 31367
- TRW DF6019S
- Promax 14-31367
- UAP 31367
- NAPA BRAKES TSR8107
- Wagner Brake BD126078E
- Centric Parts 321.45063
- Omnicraft QBRR628
- DuraGo BR31367
- Qualis 31367
RAYBESTOS 980288R Cross Reference
We have 51 alternatives for the 980288R by RAYBESTOS:
- ASH25836
- 829352495735
- BENDIX 145597
- MAZDA GK2Y3325XD
- MAZDA GK2Y3325XE
- MAZDA GK2Y3325XF
- WABCO PS126078
- ADVANCE AUTO PARTS YH145597
- ADVANCE AUTO PARTS YH145597C
- ADVANCE AUTO PARTS YH145597P
- AUTOPARTSOURCE 474680
- AUTOXTRA AX31367
- AUTOXTRA AX54142
- AUTOZONE 31367
- AUTOZONE 31367DG
- BRAKEBEST 34010885
- BRAKEBEST 980288
- BRAKEBEST 980288FZN
- BRAKEBEST 980288R
- BRAKEBEST 980288RGS
- BREMBO 09.9131.10
- BREMBO 09.9131.11
- BREMBO 25871
- CENTRIC 120.45063
- CENTRIC 121.45063
- CENTRIC 126.45063CSL
- CENTRIC 126.45063CSR
- CENTRIC 126.45063SL
- CENTRIC 126.45063SR
- CENTRIC 127.45063CL
- CENTRIC 127.45063CR
- CENTRIC 127.45063L
- CENTRIC 127.45063R
- CENTRIC 128.45063CL
- CENTRIC 128.45063CR
- CENTRIC 128.45063L
- CENTRIC 128.45063R
- CENTRIC 320.45063
- CENTRIC 321.45063
- DURA CORP BR31367
- MIGHTY DISTRIBUTING SYSTEM 31367
- NAPA BRAKES TSR8107
- NEWTEK AUTOMOTIVE 31367
- POWERSTOP JBR998EVC
- PROMAX 14-31367
- QUALITY BRAND Q629
- TRW DF6019S
- UAP 31367
- VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING X51684
- WAGNER BRAKE BD126078
- WINHERE 6620539
Fits Vehicles
- Mazda 6 (2003-2005)
